PHASE-34-WB-NP

Products key fetures

Feature 1: Made from Alloyed Aluminum with Corrosion-Resistant Coating, Resistant to Moisture and Harsh Weather Conditions for Reliable Outdoor Performance.

Feature 2: Designed for Stable Signal Transmission in Wireless Links Over Long Distances (Up to 45 km), Ideal for Professional Point-to-Point Projects.

Feature 3: Compatible with 4, 5, and 6 GHz Frequency Bands.

Feature 4: Advanced Protection Against Environmental Factors, Maintaining Performance Even in Harsh Weather Conditions, Thanks to the Use of Waterproof and Dustproof Geomet Coating.

Feature 5: Seamless Connection with Ligowave, Mimosa, Mikrotik, and Other Leading Wireless Brands.

Feature 6: Phase’s next-generation series mounts with precise angle-tuning capability for achieving maximum signal strength and quality.

Feature 7: High wind resistance, capable of withstanding winds up to 250 km/h in accordance with ETSI standards.

Feature 8: Easy installation without the need for additional adapters for MikroTik and Mimosa C5C radios

Categories: , ,
Tags: , , , ,

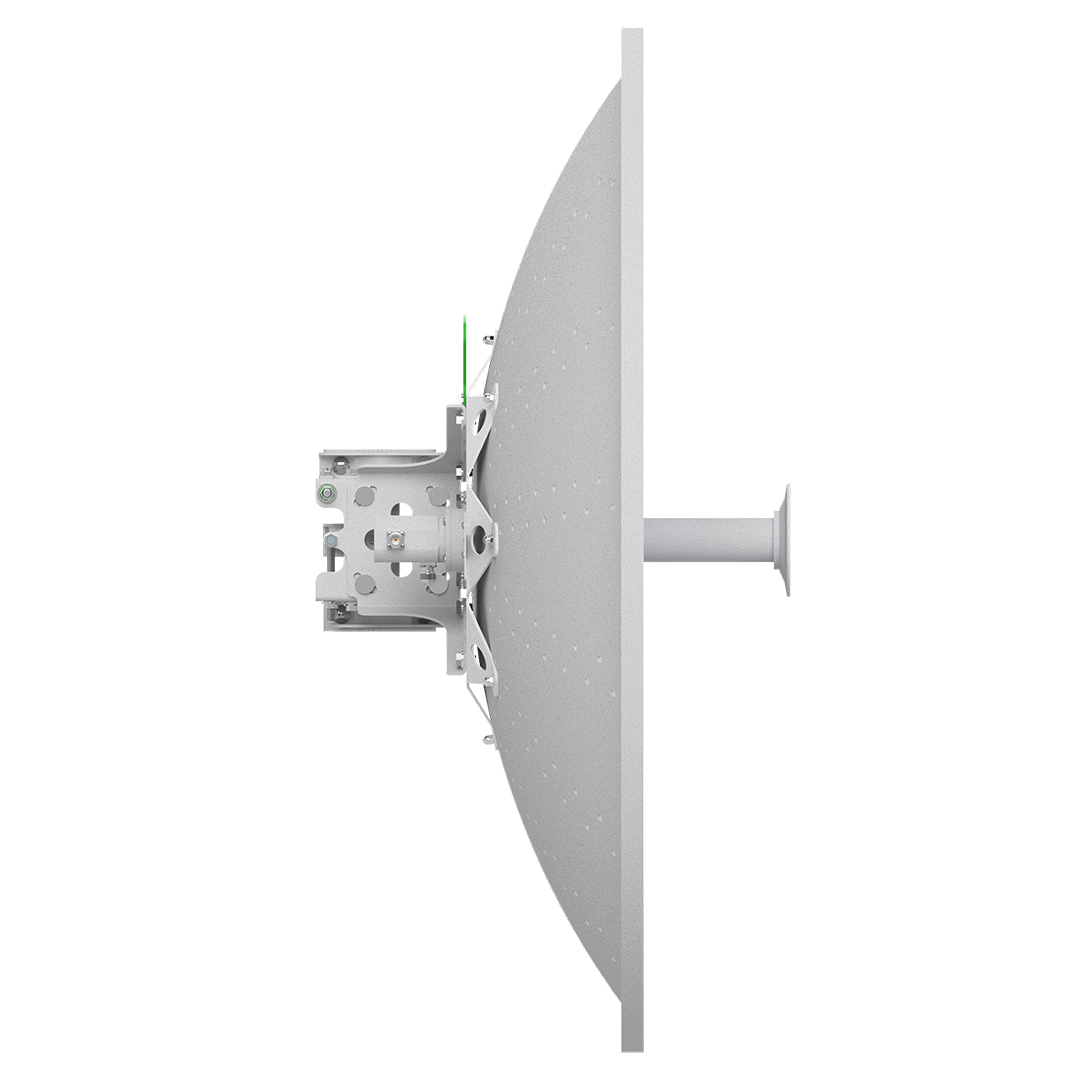

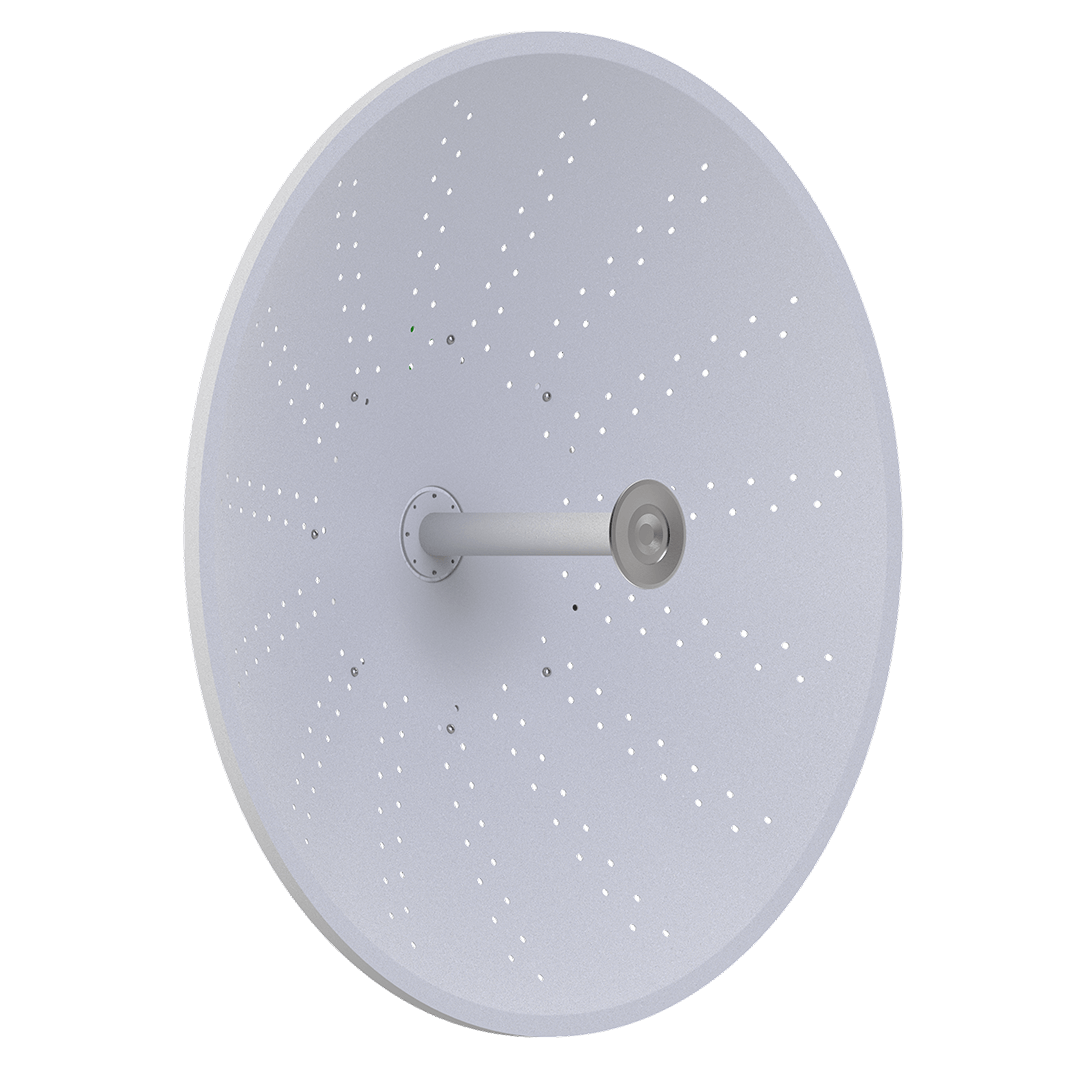

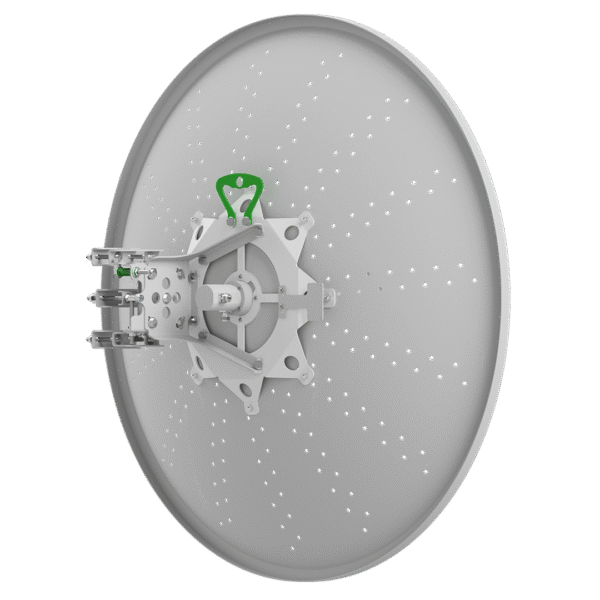

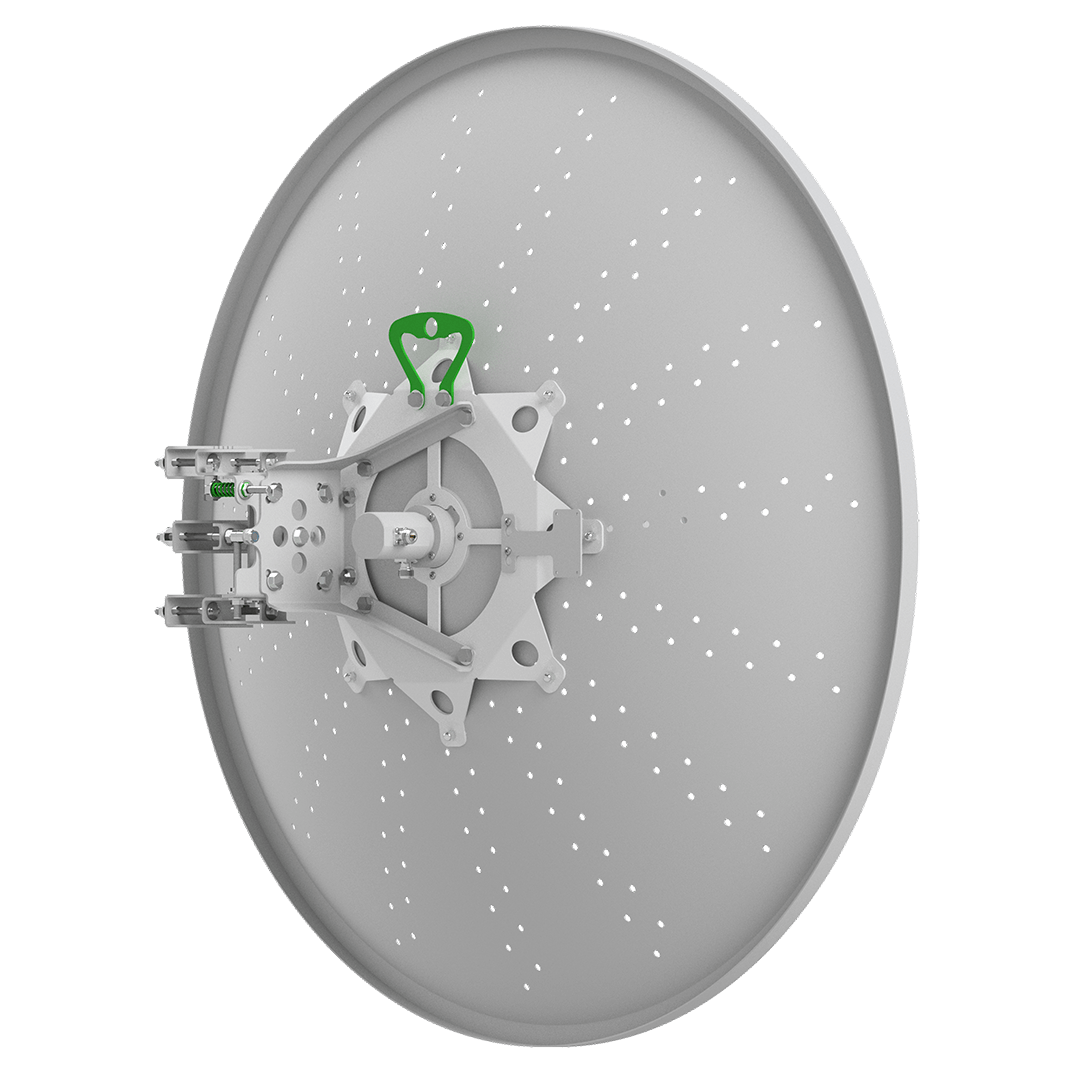

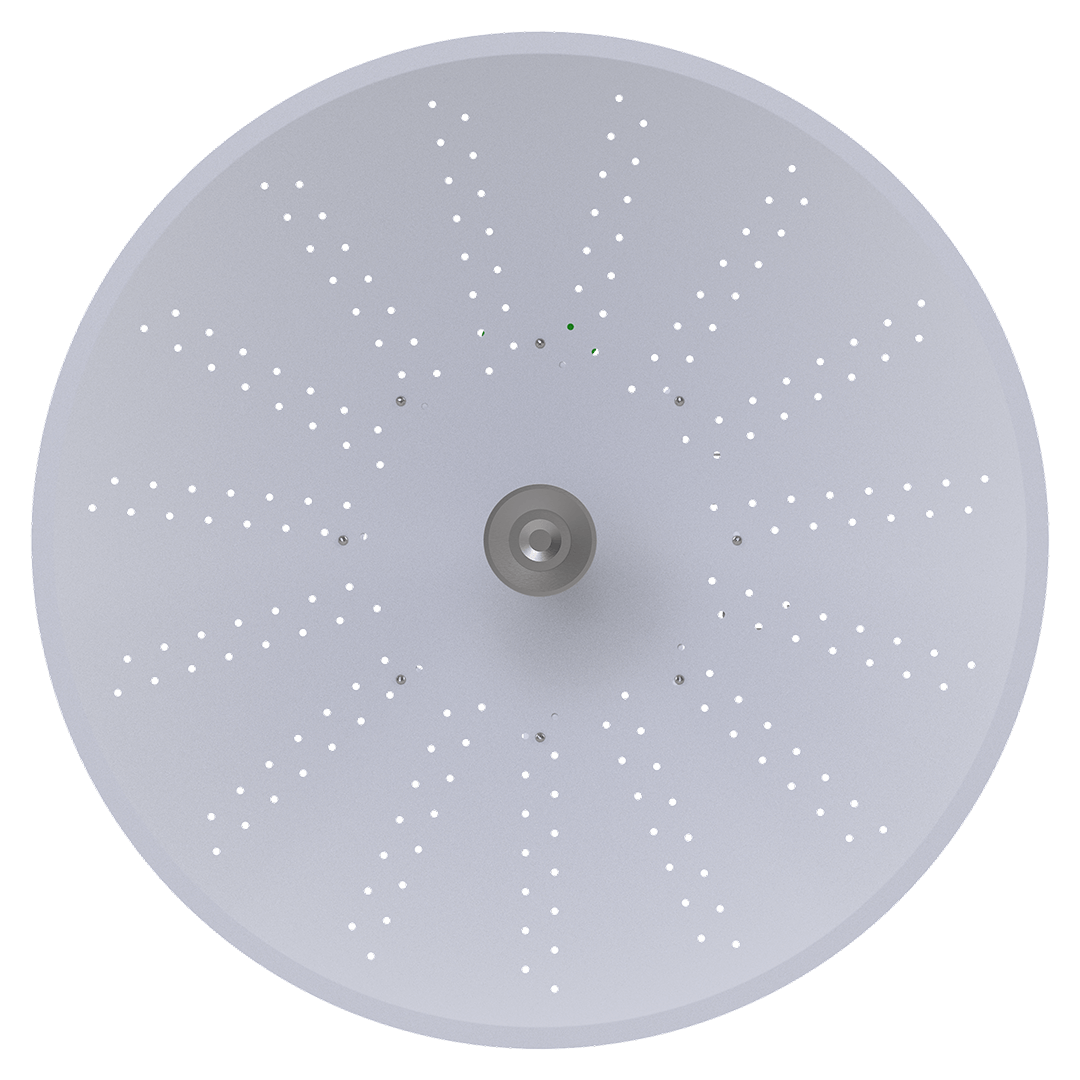

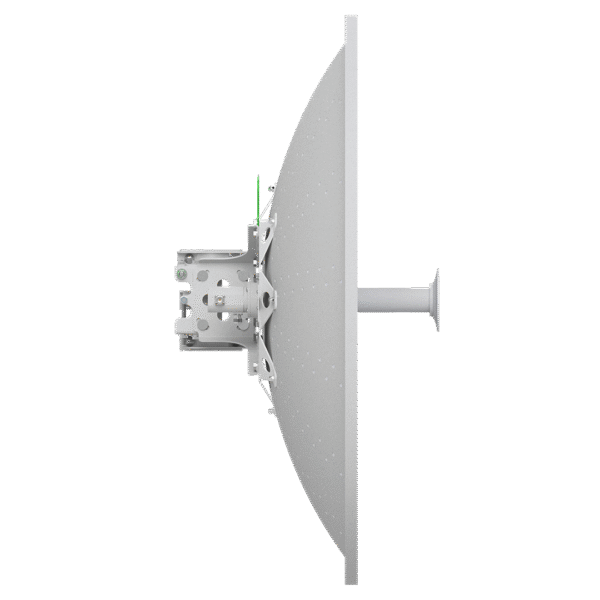

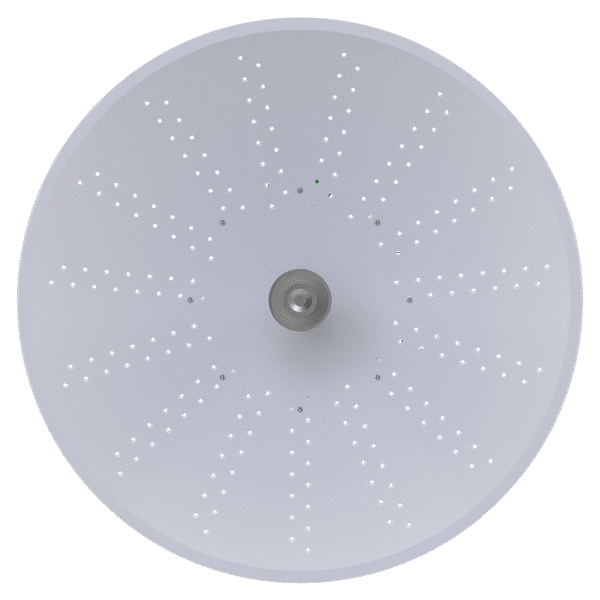

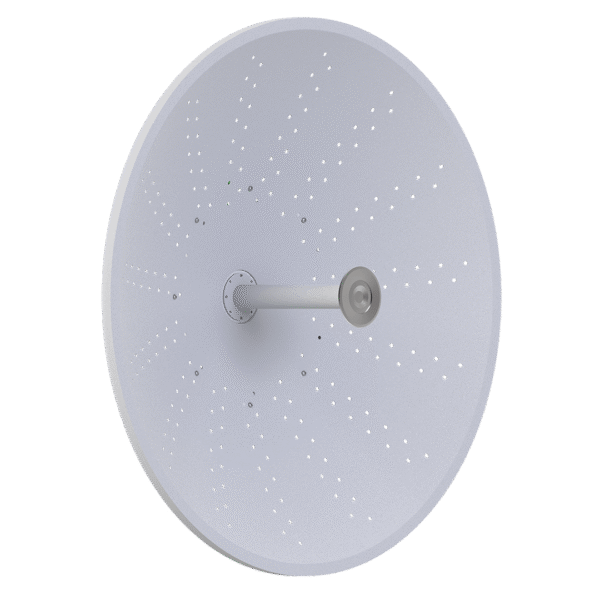

PHASE-34-WB-NP
PHASE-34-WB-NP - Image 2
PHASE-34-WB-NP - Image 3
PHASE-34-WB-NP - Image 4
خدمات پس از فروش

After-Sales Service

گارانتی 18 ماهه

Build Quality and Materials

warranty

Solid Warranty

نصب آسان

Easy installation

PHASE-34-WB-NP antenna

The 34dBi Phase brand antenna, with a diameter of 105 centimeters, is used for data transmission over long distances up to 80 kilometers. The base or mount kit of this antenna is of the easy mount kit type, and in the construction of the base, the Geomint coating process has been used for maximum resistance against erosion and rust.

PHASE-34-WB-NP antenna

This product is fully compatible with all radios available on the market, especially those from Mikrotik, Mimosa, and LigoWave. This PHASE antenna is offered at the same price for both the 5 and 6 GHz frequency bands. Additionally, this antenna can be customized for use with Mimosa X series products at the same price.

Product Model

PHASE-34-WB-NP
Antenna Type

Parabolic Solid Dish Antenna
Frequency Range

GHz 4.5-6.4
Impedance

50 Ω
Polarization

Vertical and Horizontal
Antenna Gain

34dBi
Weight

net: 10.5 kg
Connector Type

2x RP – Female Ntype
Max/Min Gain

in 6400Mhz(35.3dBi) & in 4500Mhz(31.8dBi)
Front to Back Ratio

≥ 42dB
S.W.R in Bandwidth

≤ 1.4:1 (Typ)
Single Unit Dimension (mm)

525*1050*1050
Operating Temperature

-40°C to +80°C
Wind Resistance

200/250 km/h
H/E Plane Beamwidth

3.1° in 5.5 GHz
Materials

Aluminium alloy and UV Resistant polymer
Mechanical Pan/Tilt

±15°
F/D Ratio

0.36
ETSI Specification

EN 302 326 DN2-DN5
Mounting Kit Style

Easy Mount Kit
