UHF-01E

قابلیت های کــــاربردی​

Feature 1: Durable and Lightweight Body Made of Aluminum Alloy.
Feature 2: Wide Frequency Band Coverage of 4, 5, and 6.
Feature 3: Corrosion-Resistant Base Utilizing a Geomet Coating Process.
Feature 4: Antenna Depth Optimization to Enhance Antenna Efficiency in High Frequency Interference Environments.
Feature 5: Ideal for Short-Distance Use Up to 10 Kilometers.
Feature 6: Resistant to Antenna Rotation During Wind Gusts.
Feature 7: Compatible with All Radios on the Market, Such As Mimosa, MikroTik, LigoWave, and Ubiquiti.

جهت استعلام قیمت و دریافت اطلاعات فنی محصولات فراموج، لطفاً از طریق راه‌های ارتباطی با ما در تماس باشید.همکاران ما در واحد فروش آماده پاسخ‌گویی و ارائه مشاوره تخصصی به شما هستند.

خدمات پس از فروش

خدمات پس از فروش

گارانتی 18 ماهه

کیفیت ساخت و مواد اولیه

warranty

گارانتی 18 ماهه

نصب آسان

نصب آسان

UHF-01E Antenna – Signal Strength, Very High Robustness!

Looking for a powerful and high-quality antenna for professional communications? The UHF Yagi antenna, with its advanced design and durable materials, delivers top performance even in the harshest conditions.

🔹Unique Features:
Very Low Return Loss for Clear and Stable Signal Reception
Internal Cabling to Reduce Interference and Increase Durability
Robust Structure: Lightweight and Rust-Resistant Aluminum Alloy Body

Electrostatic Powder Coating for Increased Durability and Corrosion Resistance
Lightning Resistance (DC Ground) for Enhanced Safety
Professional Connectors: N-Type Female for Stable Connections
Installation Flexibility: Base Angle Adjustment up to +15 Degrees for Optimal Setup
20 MHz Frequency Range with Customization Options Based on Your Needs

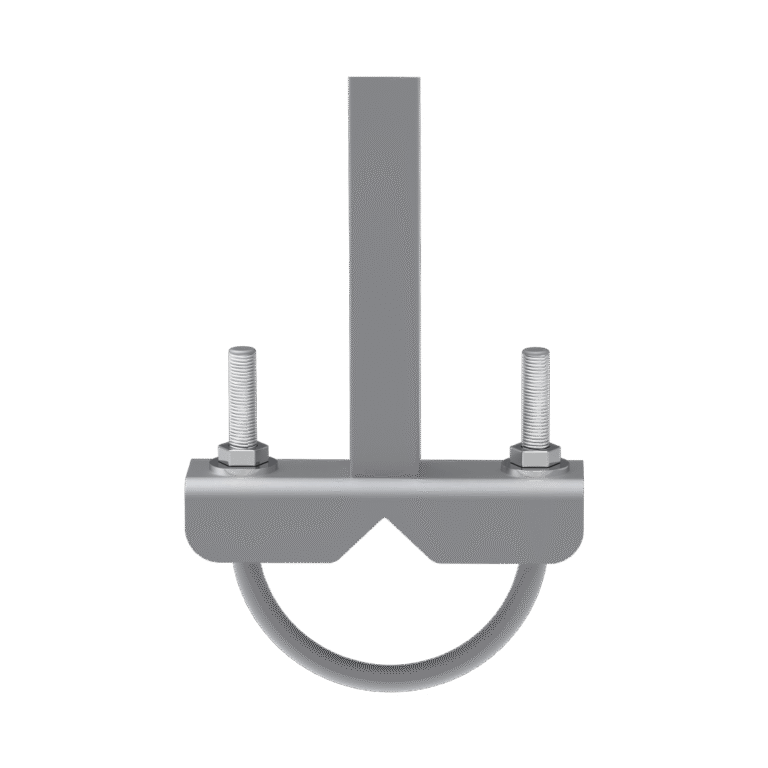

Easy Installation on Towers: Rust-Resistant Base, Connectable to Pipes… ✔ Easy Installation on Towers: Rust-Resistant Base, Connectable to Pipes from 10 to 60 Centimeters.

آنتن UHF-01E – انتخابی حرفه‌ای برای ارتباطاتی بی‌نقص!

Product Model

UHF 1 ELEMENT

Antenna Type

Yagi Antenna

Frequency Range

350-470 MHz

Impedance

50 Ω

Polarization

Vertical / Horizontal

Max Gain

4.5dBi

Mechanical Pan/Tilt

±15°

S.W.R in Bandwidth

≤ 1.2:1

Max Power

50 Watts

Lightning Protection

DC Ground

Single Unit Dimension (mm)

380*350

Wind Resistance

180/150 km/h

Weight

net: 0.8 kg

Bandwidth

20 MHz

H Plane Beamwidth@-3dB

200°

E Plane Beamwidth@-3dB

68°

Connector

Female Ntype / PL 259

Materials

Aluminium – Iron and UV Resistant polymer
