PHASE-30ISO-WB-HP

Products key fetures

Feature 1: Use of Alloyed Aluminum with Electrostatic Paint Coating.

Feature 2: Suitable Performance for Medium Distances up to 35 Kilometers

Feature 3: Coverage of Frequency Bands in the 4, 5, and 6 GHz Ranges

Feature 4: Use of Geomet Coating

Feature 5: Support for All Leading Global Brands such as Ligowave, Mimosa, and More ….

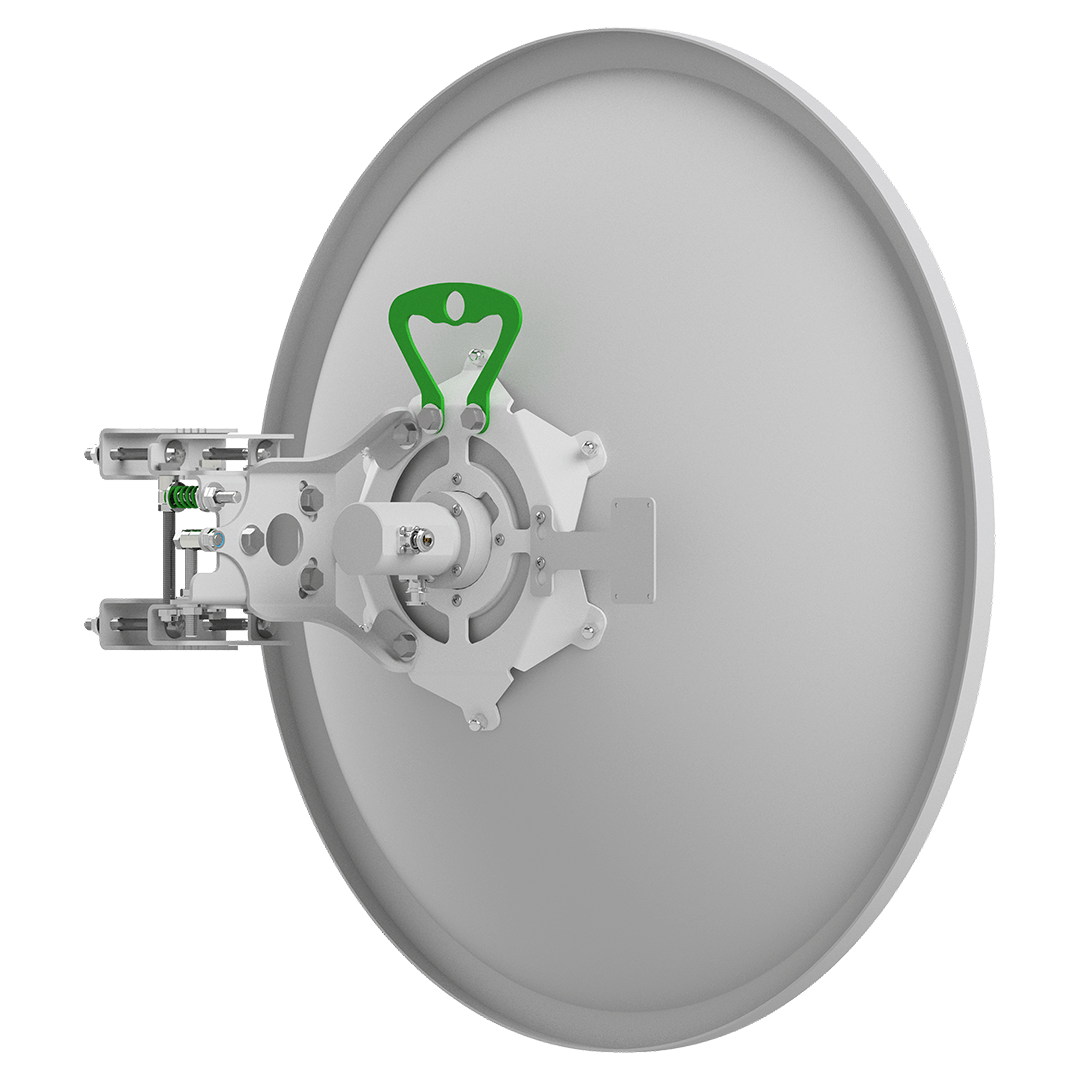

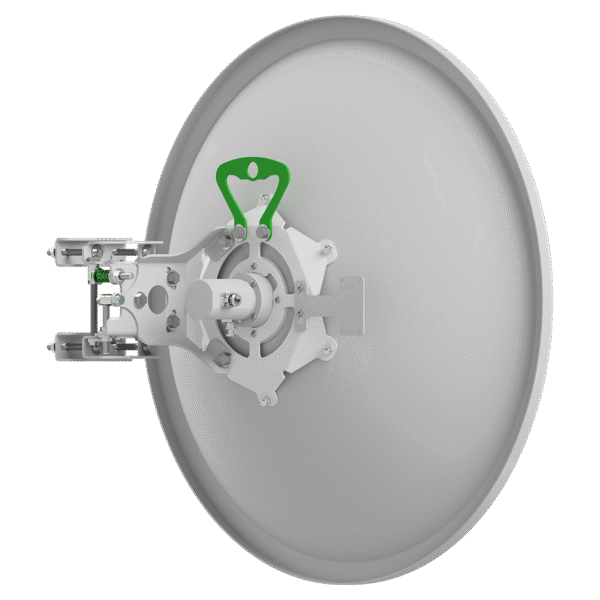

Feature 6: Utilization of FAZ’s Latest Generation Easy-Mount Brackets with 15° Tuning Capability

Feature 7: Resistance to High Winds up to 250 km/h, Adhering to ETSI Engineering Standards

Feature 8: Equipped with a Radio-to-Dish Mount Kit for MikroTik and Mimosa C5C Brands

خدمات پس از فروش

After-Sales Service

گارانتی 18 ماهه

Build Quality and Materials

warranty

Solid Warranty

نصب آسان

Easy installation

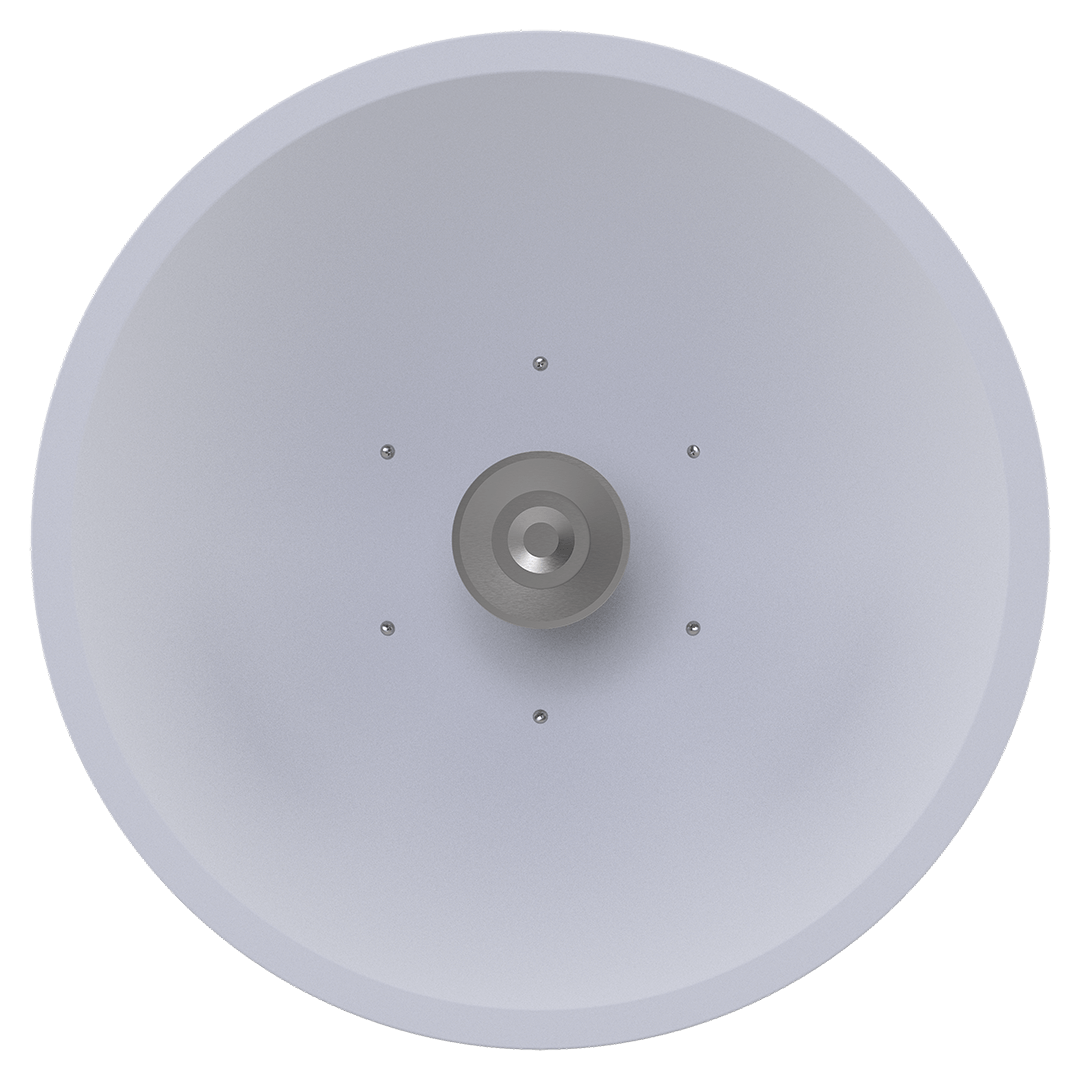

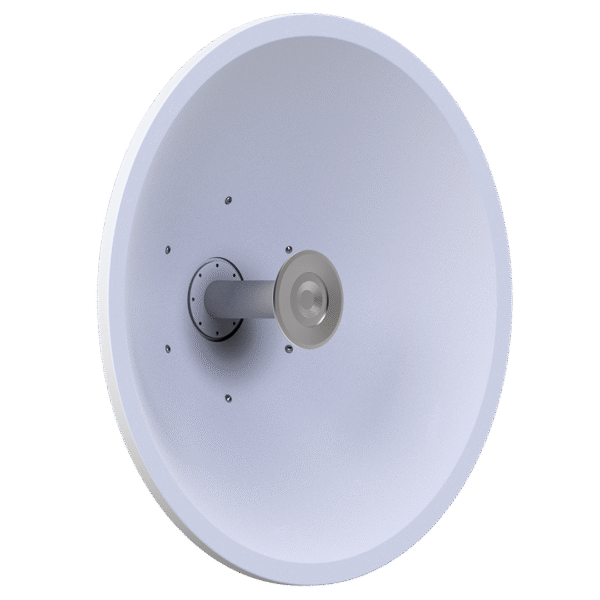

PHASE-30ISO-WB-HP Phase Wireless Antenna.

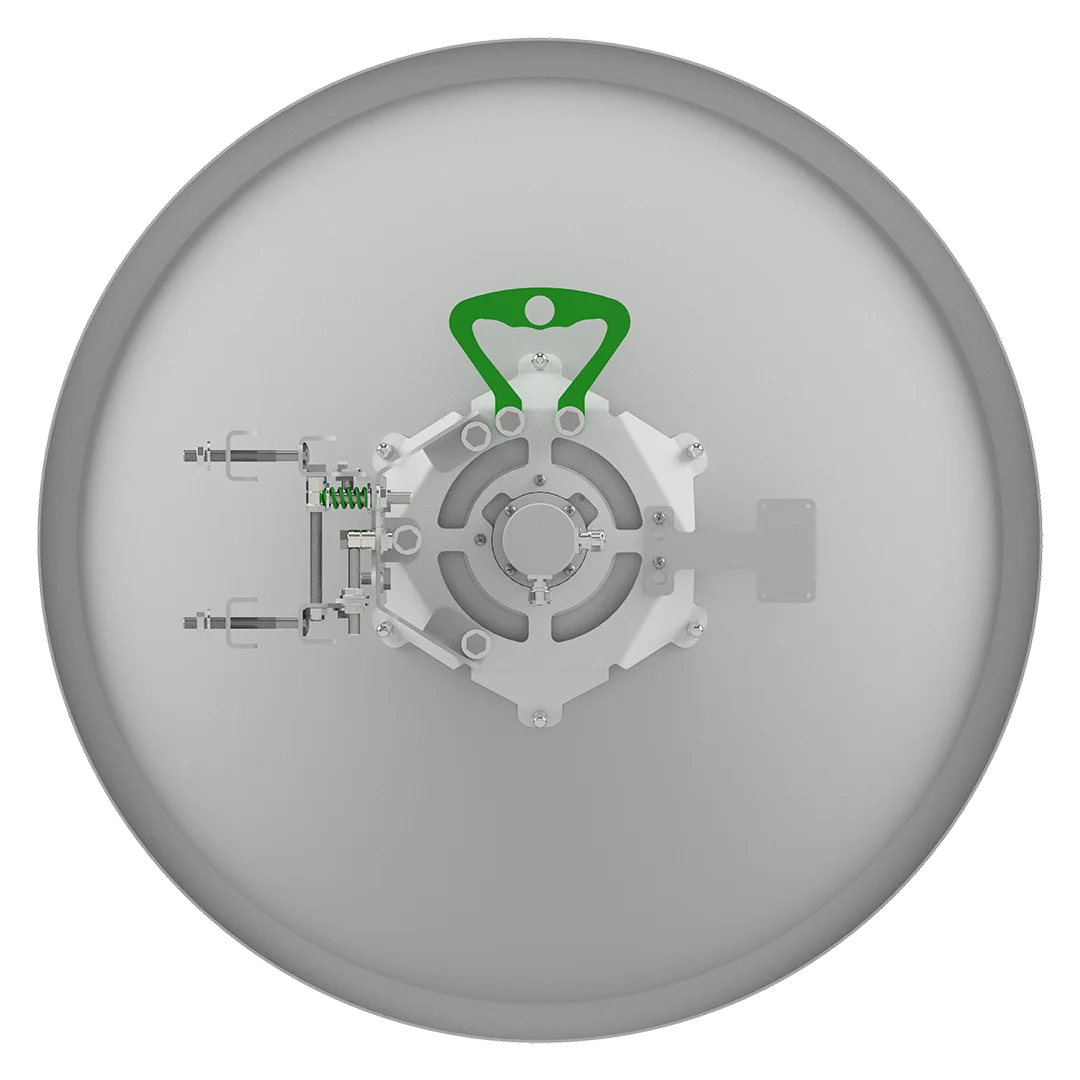

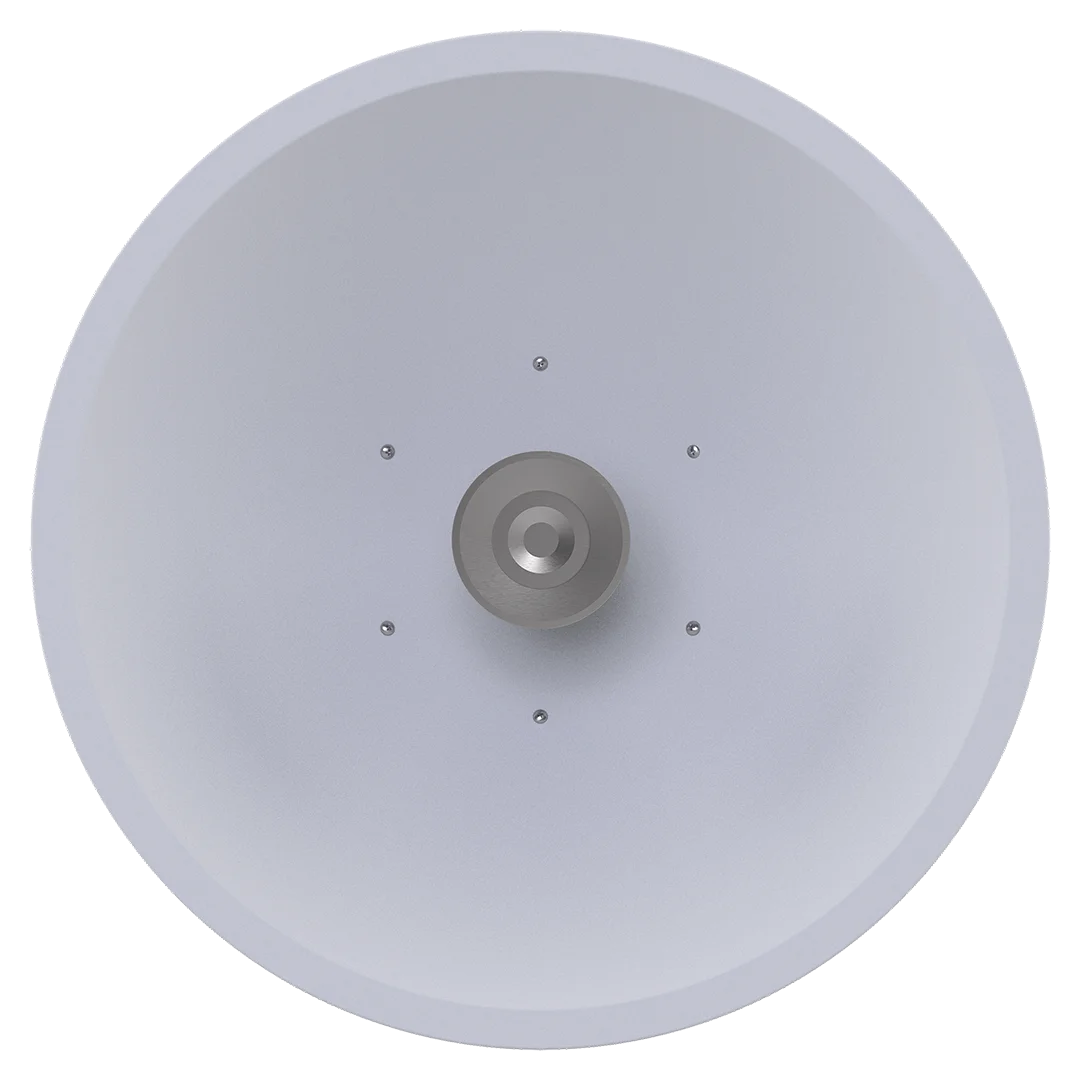

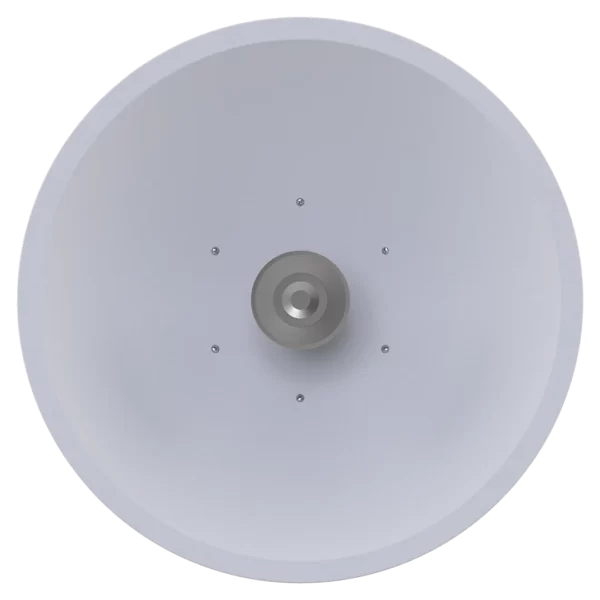

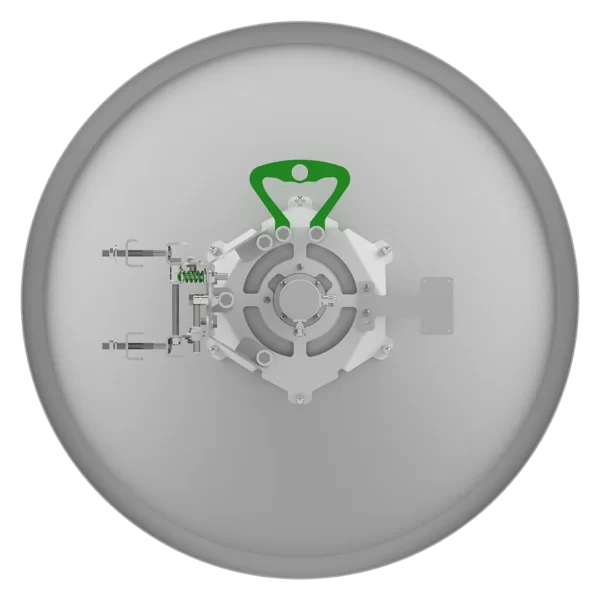

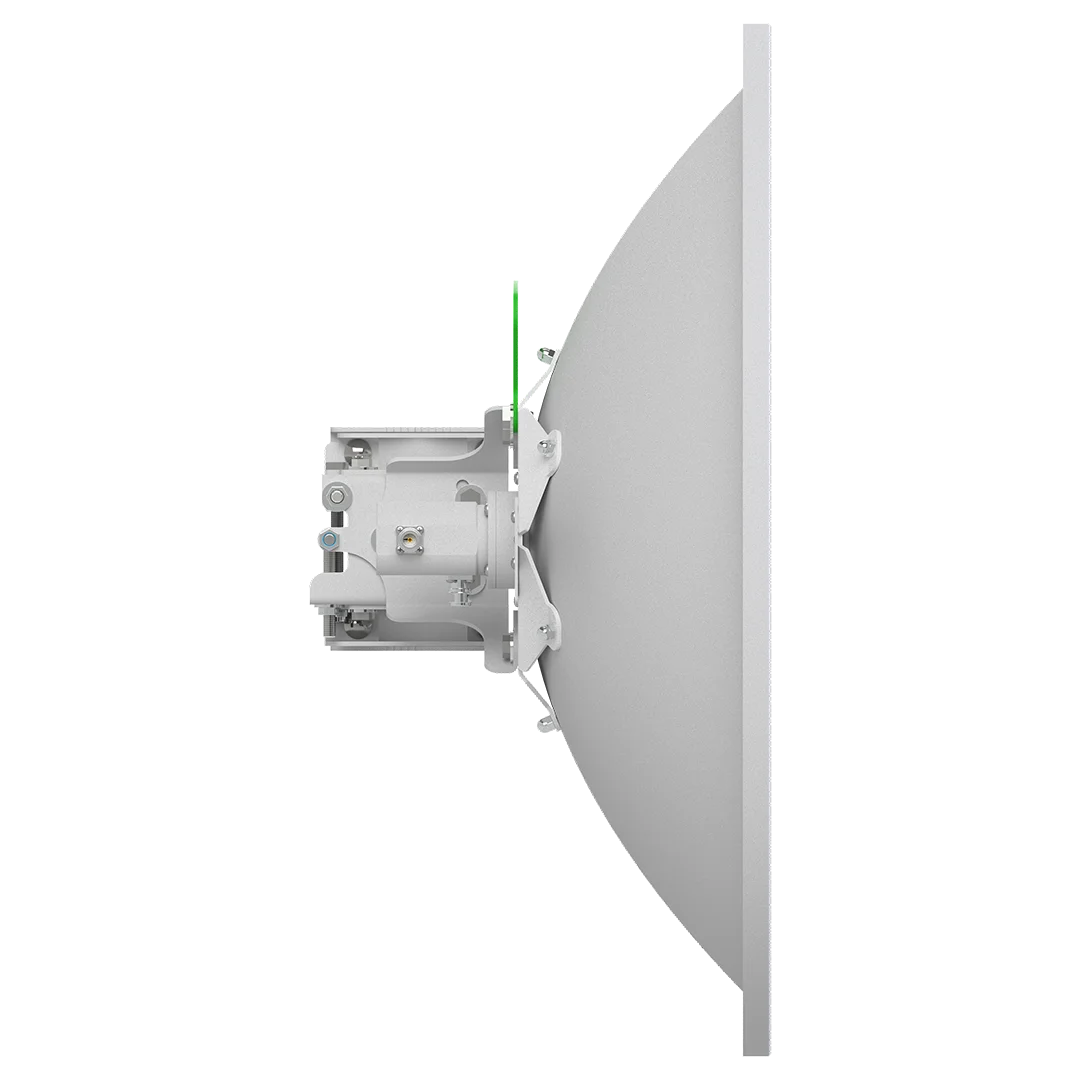

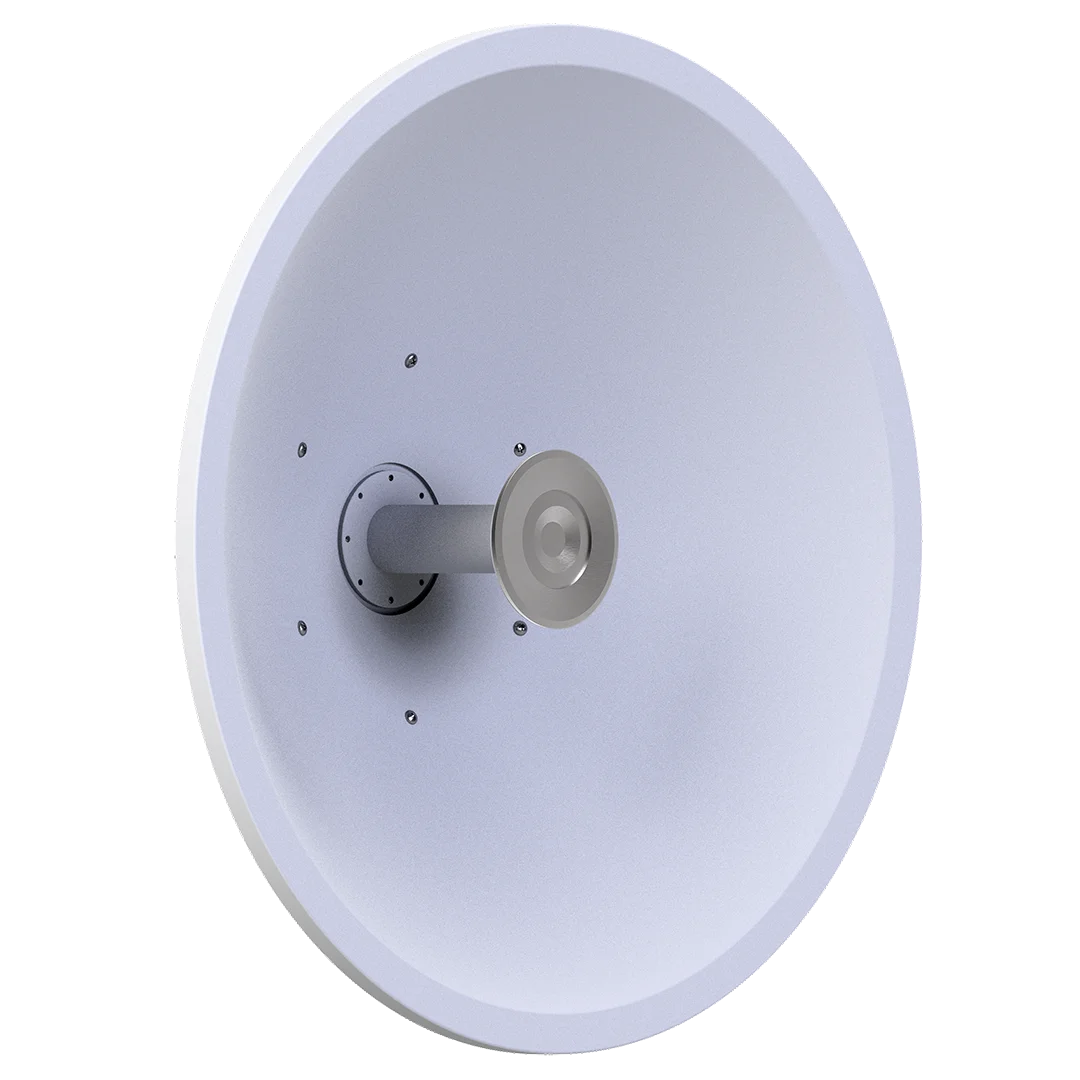

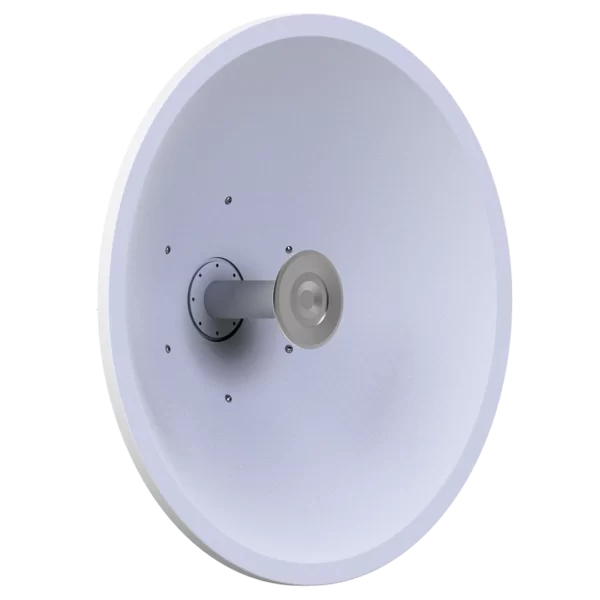

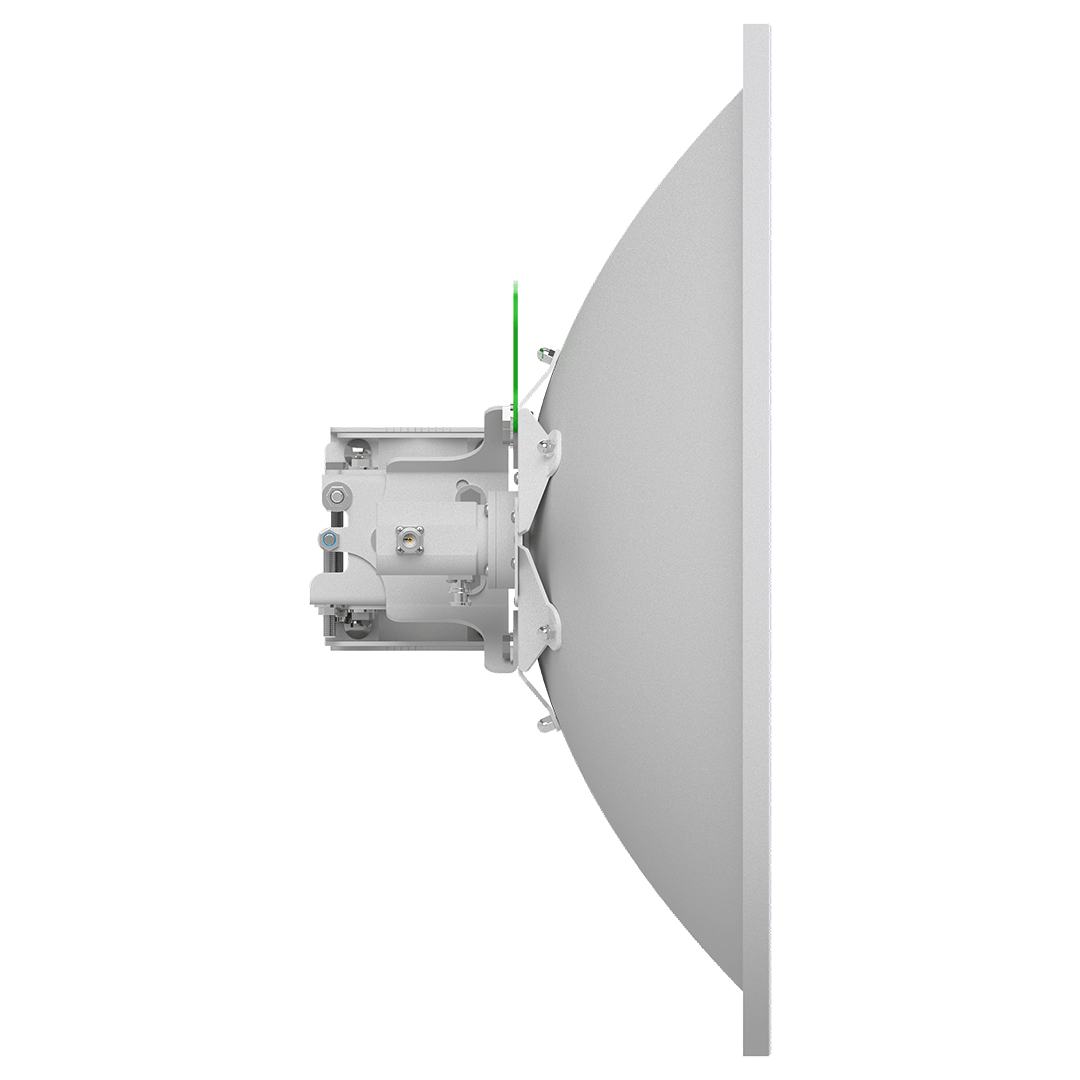

30dBi Phase brand antenna, with a diameter of 67 cm, is used for data transmission over medium distances up to 25 kilometers. The depth of this antenna has been optimized to provide very good signaling in environments with high frequency interference. The word ISO in this product indicates that this antenna is of the HP or High Performance type. The base or mount kit of the PHASE-30ISO-WB-HP Phase wireless antenna is of the easy mount kit type, and in the construction of the base, the Geomint coating process has been used for maximum resistance against erosion and rust.

Robust and Lightweight Body: Utilizing aluminum alloy, this antenna features a body that is resistant to weather conditions while also being lightweight, making its installation and relocation easy.

Wide Coverage: The PHASE-30ISO-WB-HP Phase wireless antenna is capable of covering the 4, 5, and 6 frequency bands, which provides users with the opportunity to enjoy high speeds and a stable connection in any environment.

Rust-Resistant Base: Utilizing the Geomint coating process, the base of this antenna is resistant to rust and corrosion, ensuring a long lifespan.

Optimized Antenna Depth: This antenna is optimized to maintain its efficiency and improve connection quality even in high frequency interference environments.

Ideal for Medium Distances: This device is designed for use over short distances up to 25 kilometers, allowing users to easily take advantage of it in various locations.

Resistant to Antenna Rotation: In windy conditions, this antenna rotates easily without compromising its signal quality.

Easy Tuning and Installation: Installing and adjusting this antenna is very easy thanks to the new PHASE mounts, and users can have it ready for use in a short amount of time.

Compatibility with Various Radios: This antenna is compatible with all radios on the market, such as Mimosa, MikroTik, Ligowave, and Ubiquiti, allowing you to use it without worrying about incompatibility.

PHASE-30ISO-WB-HP Phase Wireless Antenna.

The PHASE-30ISO-WB-HP Phase wireless antenna is fully compatible with all radios available on the market, especially Mikrotik, Mimosa, and LigoWave radios. This phased array antenna is available in two separate frequency bands, 5 and 6 GHz, at the same price. It can also be customized for use with Mimosa X series products at the same price.

Ultimately, by choosing the high-quality PHASE-30ISO-WB-HP Phase wireless antenna, you can experience reliable and stable communications and benefit from technological advancements. This antenna provides you with all the necessary features for a proper and high-quality connection.

Product Model

PHASE-30-ISO-WB-HP

Antenna Type

Parabolic Solid Dish Antenna

Impedance

50 Ω

Polarization

Vertical and Horizontal

Antenna Gain

30dBi

Weight

net: 5.4 kg

Connector Type

2x RP – Female Ntype

Max/Min Gain

in 6400Mhz(31.3dBi) & in 4500Mhz(29.2dBi)

Front to Back Ratio

≥ 30dB

S.W.R in Bandwidth

≤ 1.4:1 (Typ)

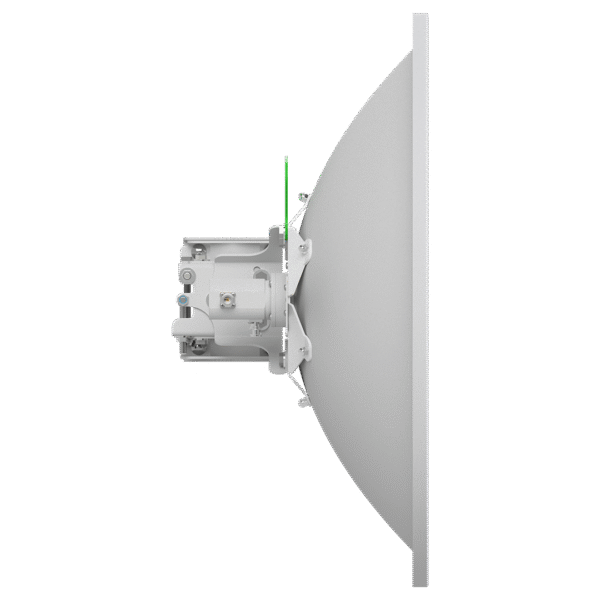

Single Unit Dimension (mm)

335*670*670

Operating Temperature

-40°C to +80°C

Wind Resistance

200/250 km/h

H/E Plane Beamwidth

4.8° in 5.5 GHz

Materials

Aluminium alloy and UV Resistant polymer

Mechanical Pan/Tilt

±15°

F/D Ratio

0.25

ETSI Specification

EN 302 326 DN2-DN5

Mounting Kit Style

Easy Mount Kit
