PHASE-30ISO-6G-HP

قابلیت های کــــاربردی​

  • Feature 1: Durable and Lightweight Body Made of Aluminum Alloy.
  • Feature 2: Wide coverage of frequency bands 4, 5, and 6.
  • Feature 3: Corrosion-Resistant Base Utilizing a Geomet Coating Process.
  • Feature 4: Antenna Depth Optimization to Enhance Antenna Efficiency in High Frequency Interference Environments.
  • Feature 5: Ideal for Short-Distance Use Up to 10 Kilometers.
  • Feature 6: Resistant to Antenna Rotation During Wind Gusts.
  • Feature 7: Compatible with All Radios on the Market, Such As Mimosa, MikroTik, LigoWave, and Ubiquiti.

جهت استعلام قیمت و دریافت اطلاعات فنی محصولات فراموج، لطفاً از طریق راه‌های ارتباطی با ما در تماس باشید.همکاران ما در واحد فروش آماده پاسخ‌گویی و ارائه مشاوره تخصصی به شما هستند.

خدمات پس از فروش

خدمات پس از فروش

گارانتی 18 ماهه

کیفیت ساخت و مواد اولیه

warranty

گارانتی 18 ماهه

نصب آسان

نصب آسان

If you are looking for a high-quality wireless antenna with excellent performance, the PHASE-30ISO-6G-HP Phase wireless antenna is an ideal choice for you. With its advanced design and modern technologies, this antenna enables stable communication in various conditions and is an excellent option for wireless networks.

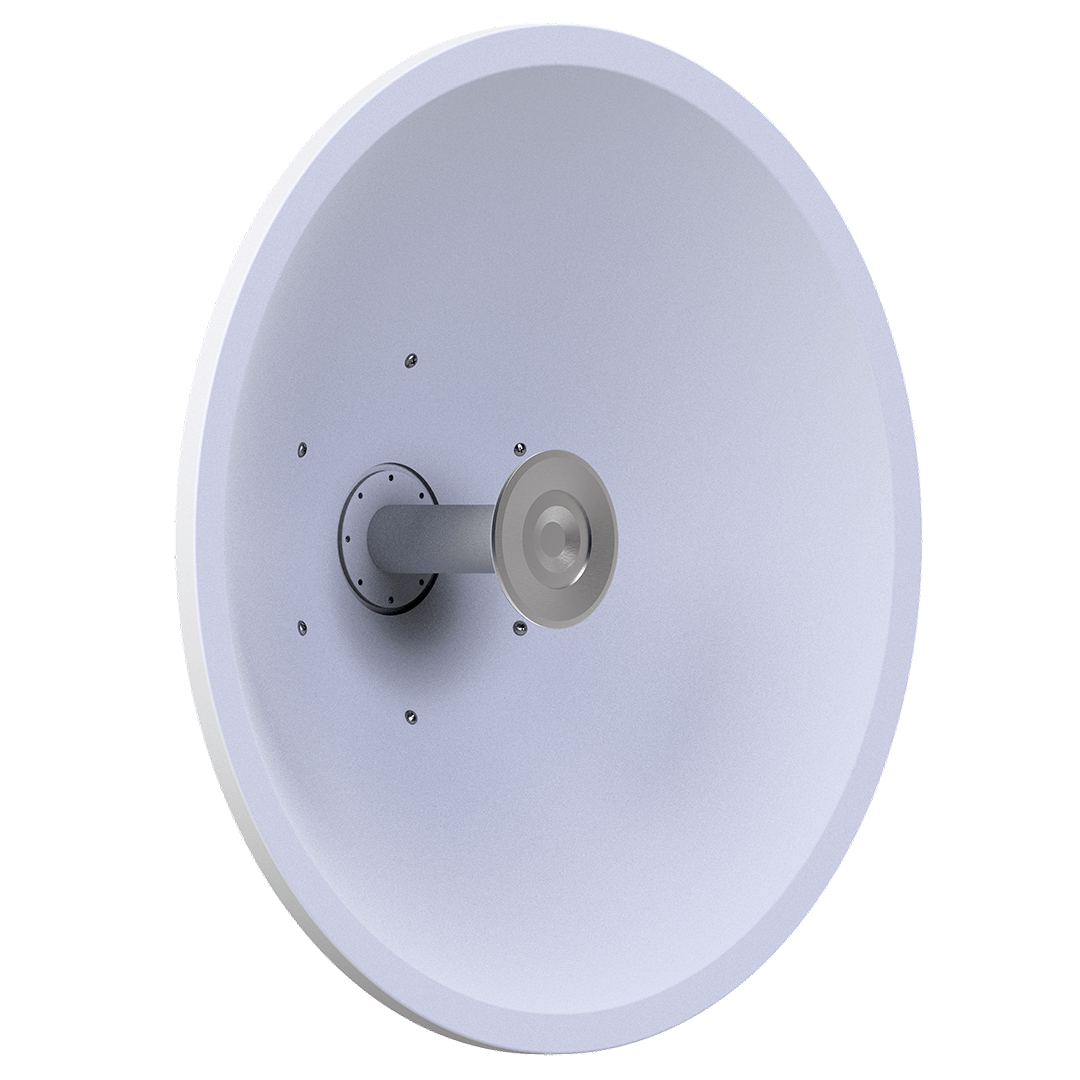

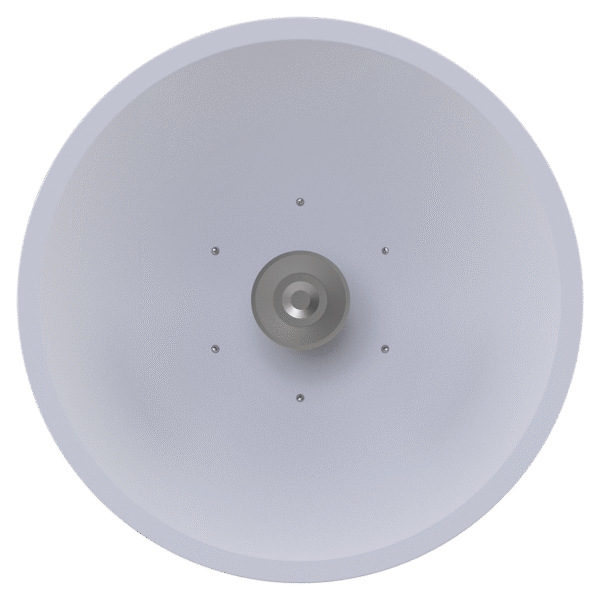

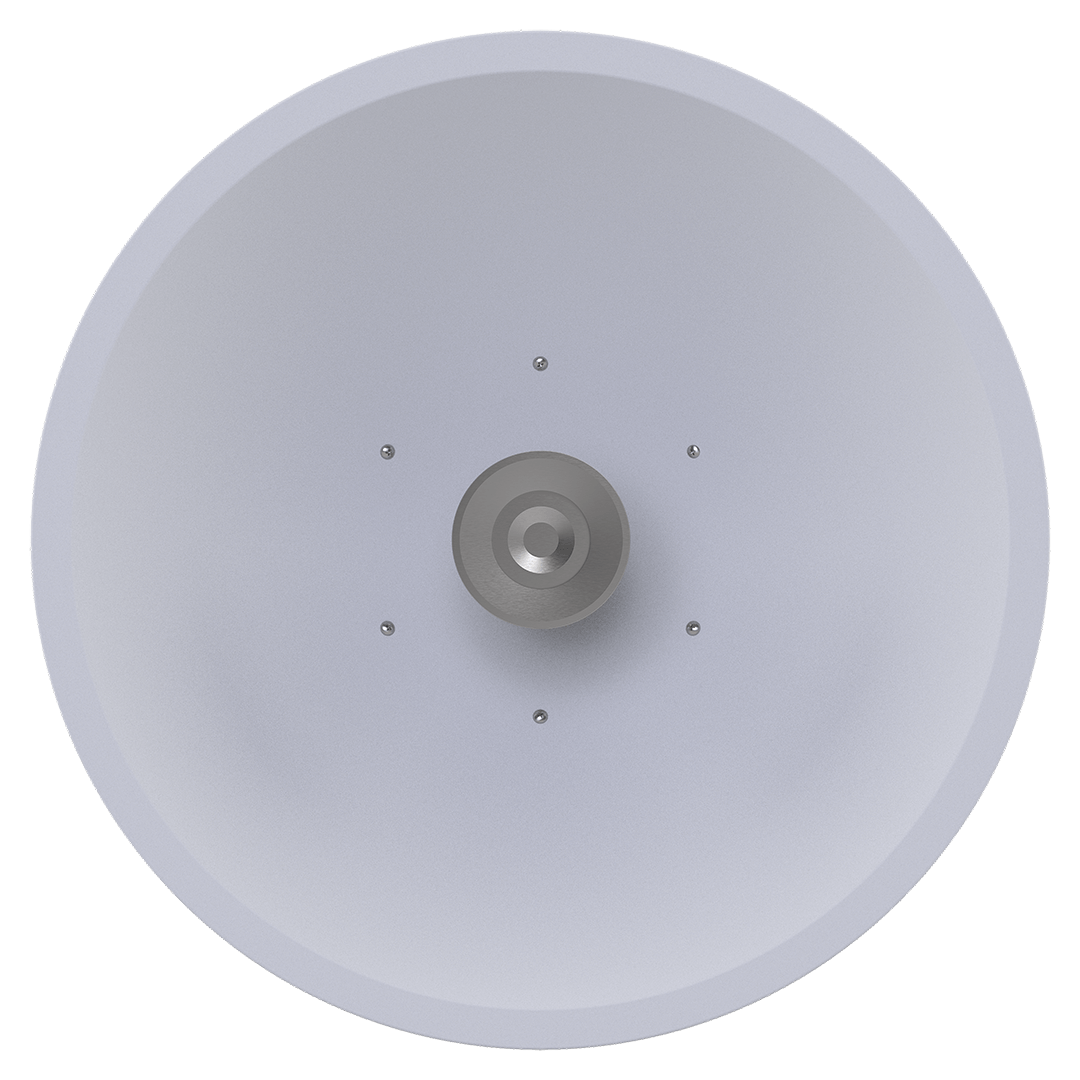

PHASE-30ISO-6G-HP Phase Wireless Antenna.

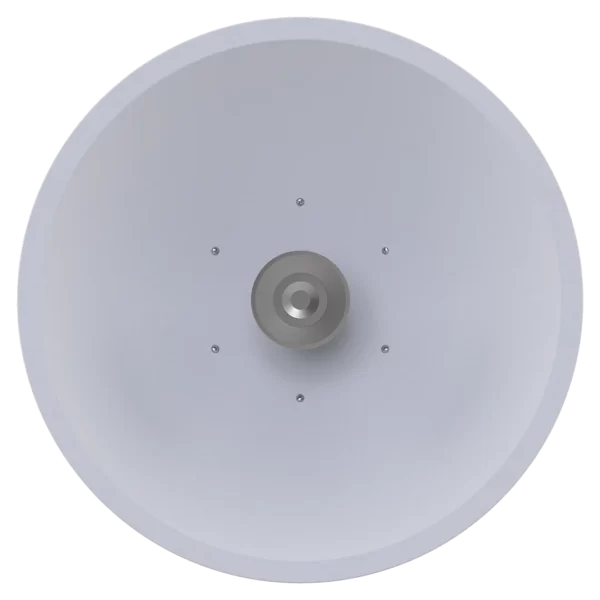

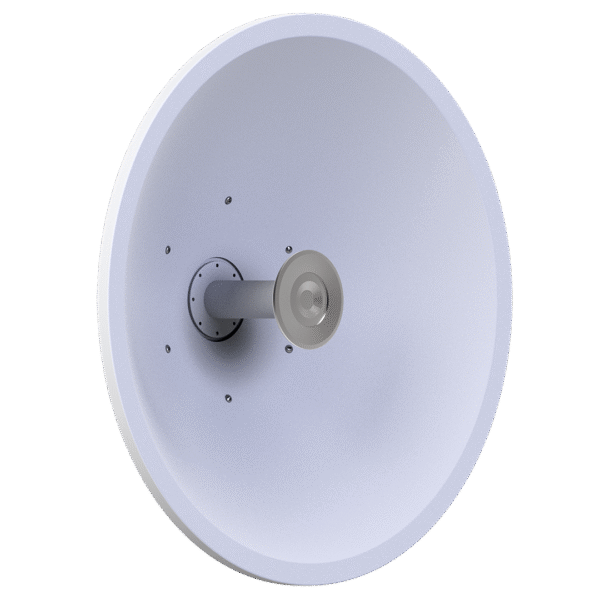

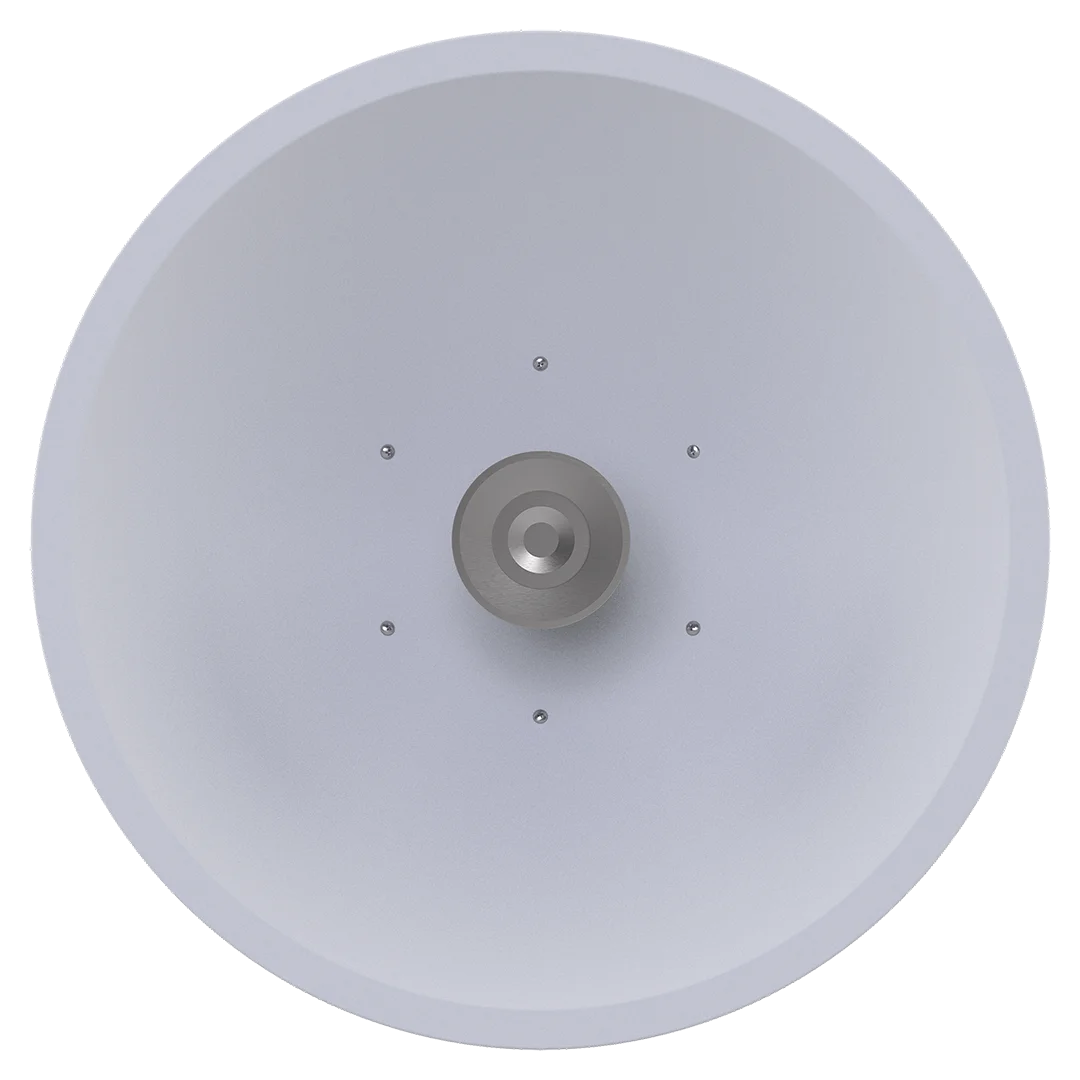

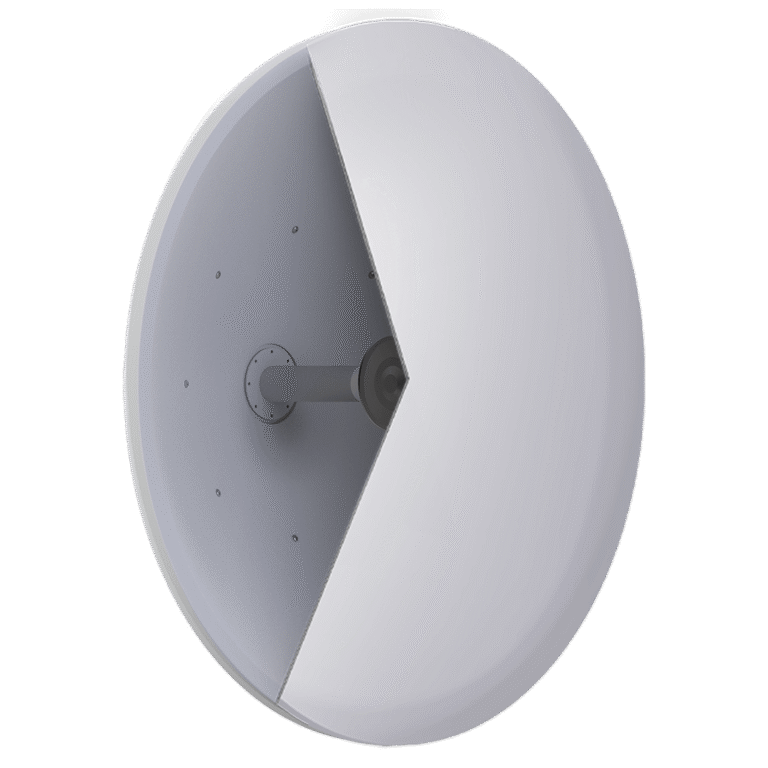

30dBi Phase brand antenna, with a diameter of 67 cm, is used for data transmission over medium distances up to 25 kilometers. The depth of this antenna has been optimized to provide very good signaling in environments with high frequency interference. The word ISO in this product indicates that this antenna is of the HP or High Performance type. The base or mount kit of this antenna is of the easy mount kit type, and in the construction of the base, the Geomet coating process has been used for maximum resistance against erosion and rust.

If you are looking for a high-quality wireless antenna with excellent performance, the PHASE-30ISO-6G-HP Phase wireless antenna is an ideal choice for you. With its advanced design and modern technologies, this antenna enables stable communication in various conditions and is an excellent option for wireless networks.

Resistant and Lightweight Body: This antenna is made of aluminum alloy, which, in addition to being lightweight, has high resistance to impact, pressure, and various weather conditions. Its design makes installation and relocation very easy.

Wide Frequency Coverage: This antenna supports the 4, 5, and 6 GHz frequency bands, allowing you to use it for various networking applications. This feature improves signal quality and simplifies connection to different devices.

Rust-Resistant Base: The base of this antenna is constructed with Geomint coating technology, which is resistant to rust and corrosion, increasing its lifespan. This feature ensures that the antenna performs excellently in all weather conditions.

Noise Reduction and Increased Efficiency: In environments with frequency interference, antenna performance may be affected. However, this antenna, with its special design, reduces noise and maintains signal quality at a high level.

Suitable for Short Distances up to 25 Kilometers: If you are looking for an excellent option for wireless communication over distances up to 25 kilometers, this antenna is the best choice. The high power and accuracy of this product provide you with a stable and uninterrupted connection.

Resistant to Wind and Unwanted Displacement: Strong winds can cause antenna displacement and signal quality degradation. However, this antenna, with its special design, resists sudden rotation and always remains in its position.

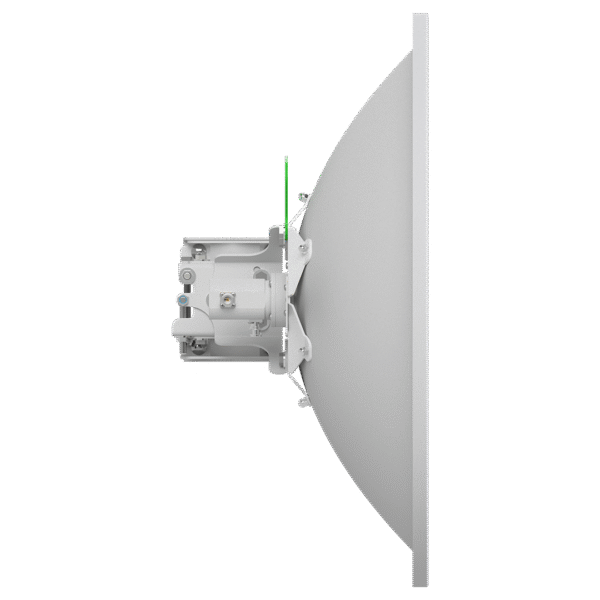

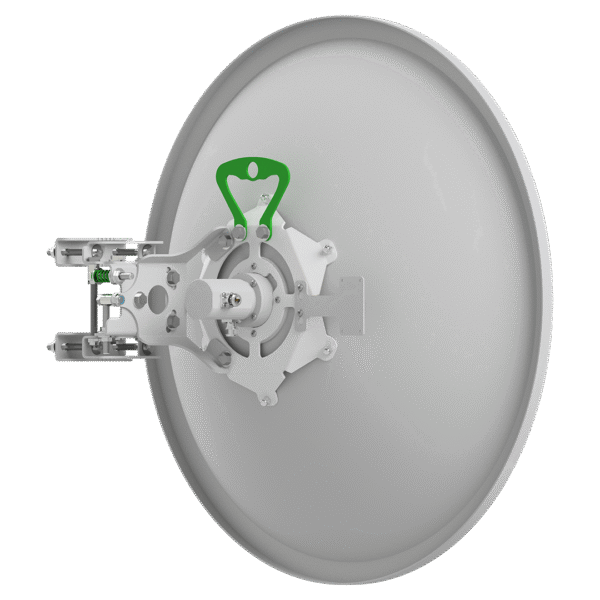

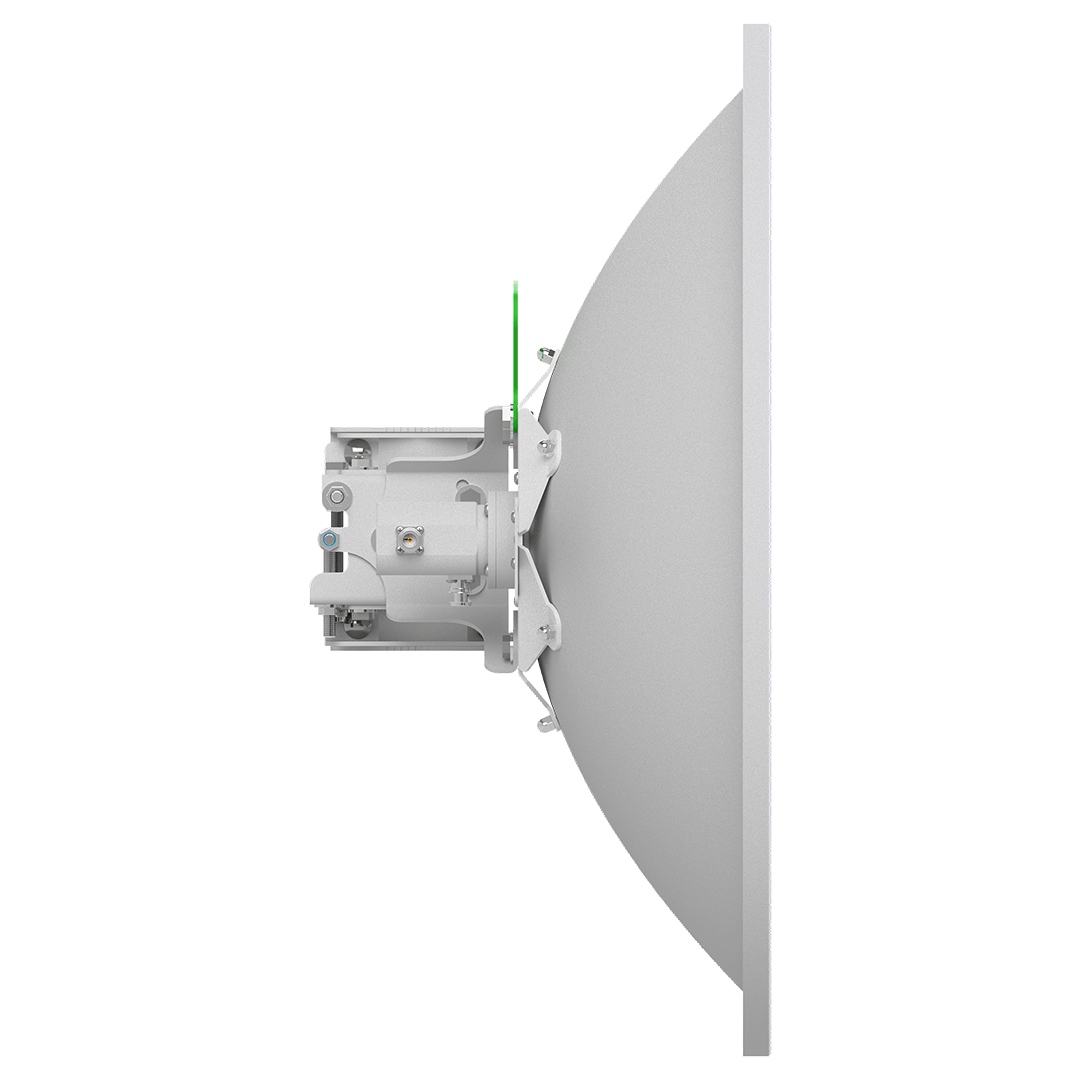

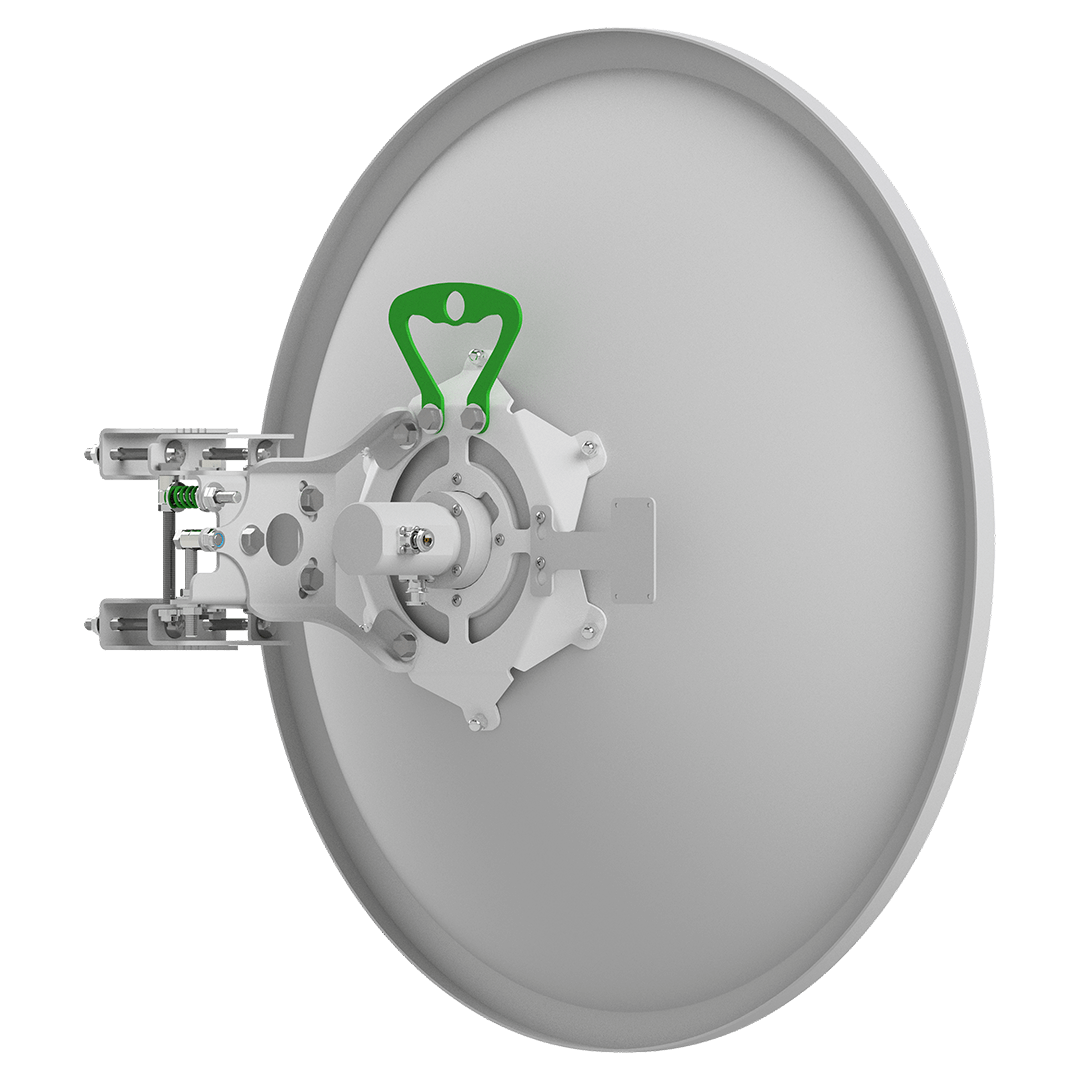

Quick and Easy Installation: The PHASE-30ISO-6G-HP Phase wireless antenna is designed using the new Phase bases, which allows for quick installation without the need for complex tools. Users can set up the antenna effortlessly and in the shortest amount of time.

High Compatibility with Various Radios: One of the strengths of this antenna is its full compatibility with reputable brands on the market such as:

  • Mikrotik – Radio Series
  • Mimosa – Radio Series
  • RayaBox – Radio Series
  • Ligowave – Radio Series
  • Ubiquiti – Radio Series

This feature allows you to use the PHASE-30ISO-6G-HP Phase wireless antenna in various networks without worrying about incompatibility.

Why this antenna would be a great choice for you ?

The PHASE-30ISO-6G-HP wireless antenna is fully compatible with all radios available on the market, especially Mikrotik, Mimosa, and LigoWave radios. This Phase antenna is offered at the same price in two separate frequency bands, 5 and 6 GHz. It can also be customized for use with Mimosa X series products at the same price.

With its robust design, high quality, wide frequency coverage, and exceptional performance, the PHASE-30ISO-6G-HP Phase wireless antenna is a professional choice for network users. If you are looking for a powerful, reliable, and stable antenna for your wireless communications, this product will be an ideal option for you.

Product Model

PHASE-30-ISO-6G-HP

Antenna Type

Parabolic Solid Dish Antenna

Frequency Range

5.5 – 6.5 GHz

Impedance

50 Ω

Polarization

Vertical and Horizontal

Antenna Gain

30dBi

Weight

net: 5.5 kg

Connector Type

2x RP – Female Ntype

Max/Min Gain

in 6500Mhz(31.4dBi) & in 5500Mhz(30dBi)

Front to Back Ratio

≥ 30dB

S.W.R in Bandwidth

≤ 1.4:1 (Typ)

Single Unit Dimension (mm)

380*650*650

Operating Temperature

-40°C to +80°C

Wind Resistance

200/250 km/h

H/E Plane Beamwidth

6.5° in 5.5 GHz

Materials

Aluminium alloy and UV Resistant polymer

Mechanical Pan/Tilt

±15°

F/D Ratio

0.25

ETSI Specification

EN 302 326 DN2-DN5

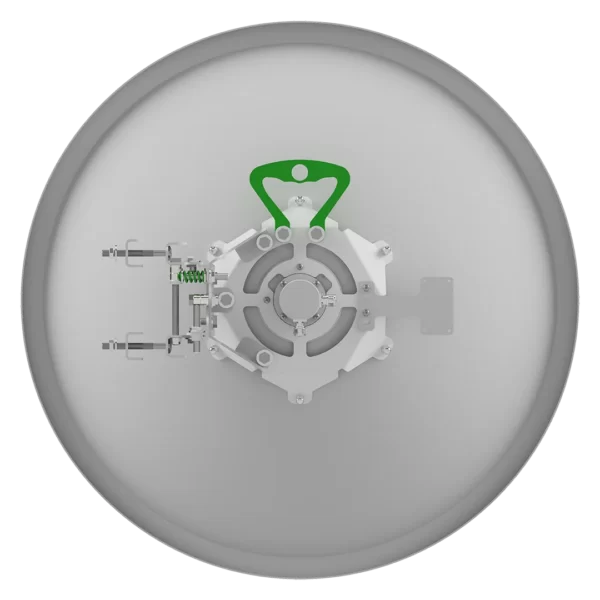

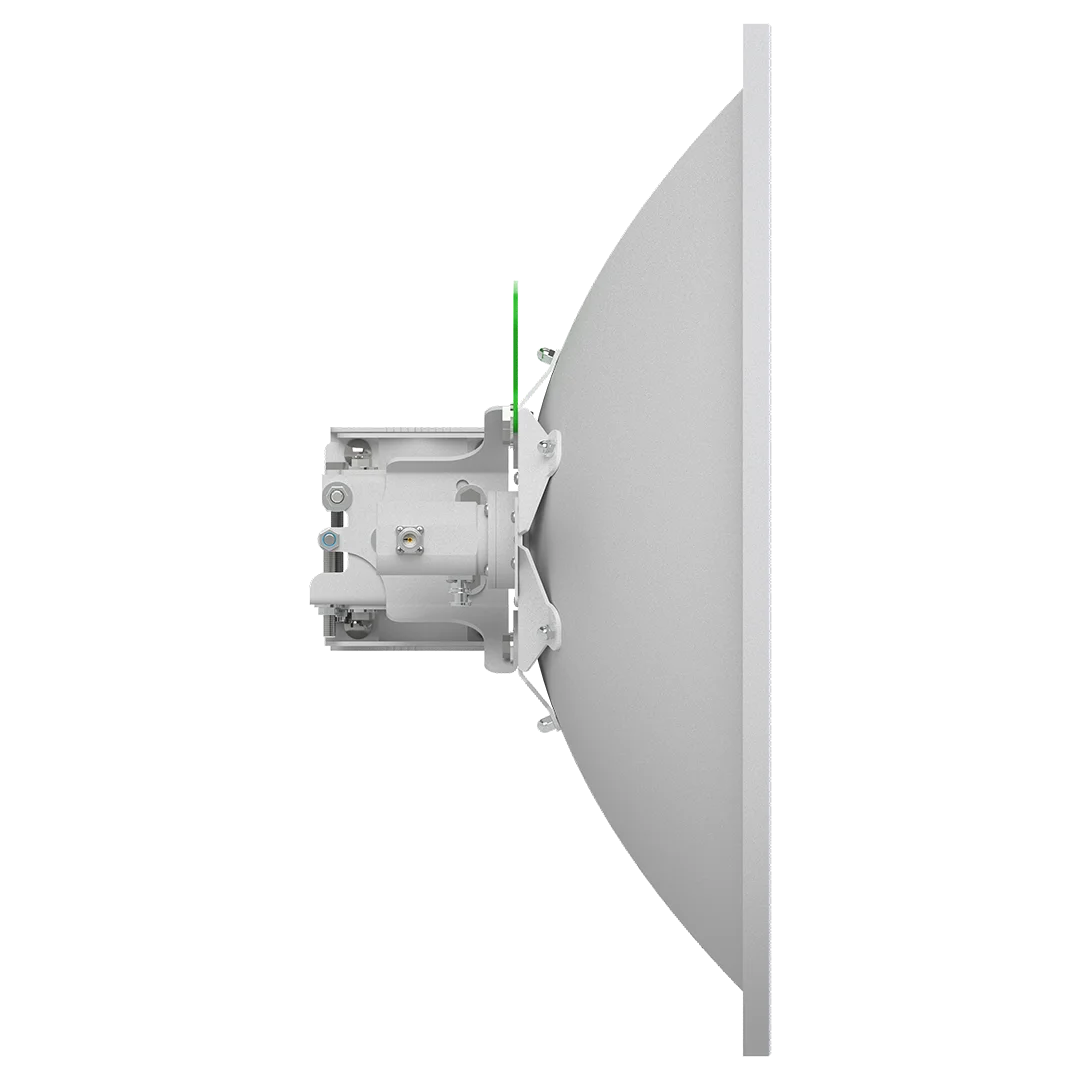

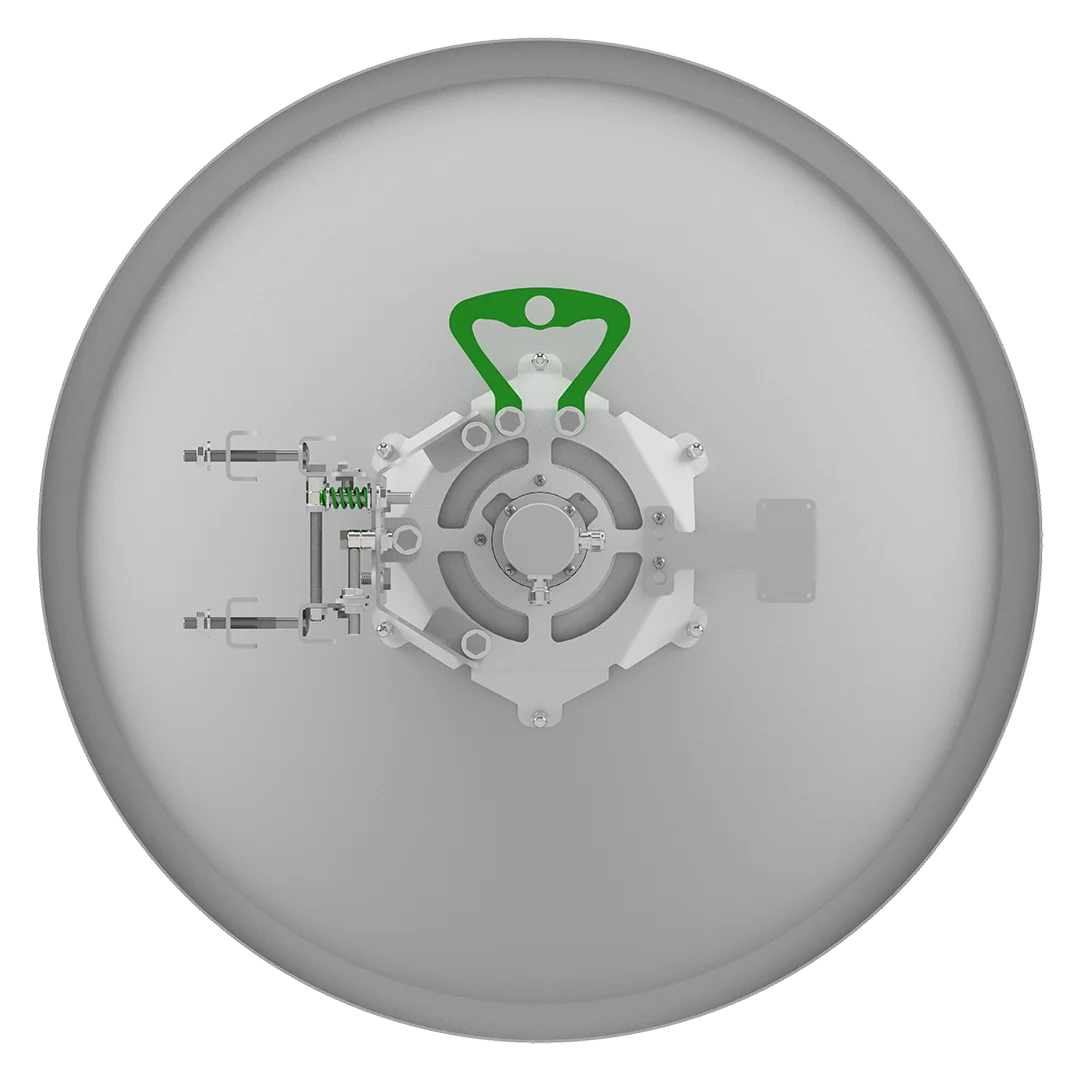

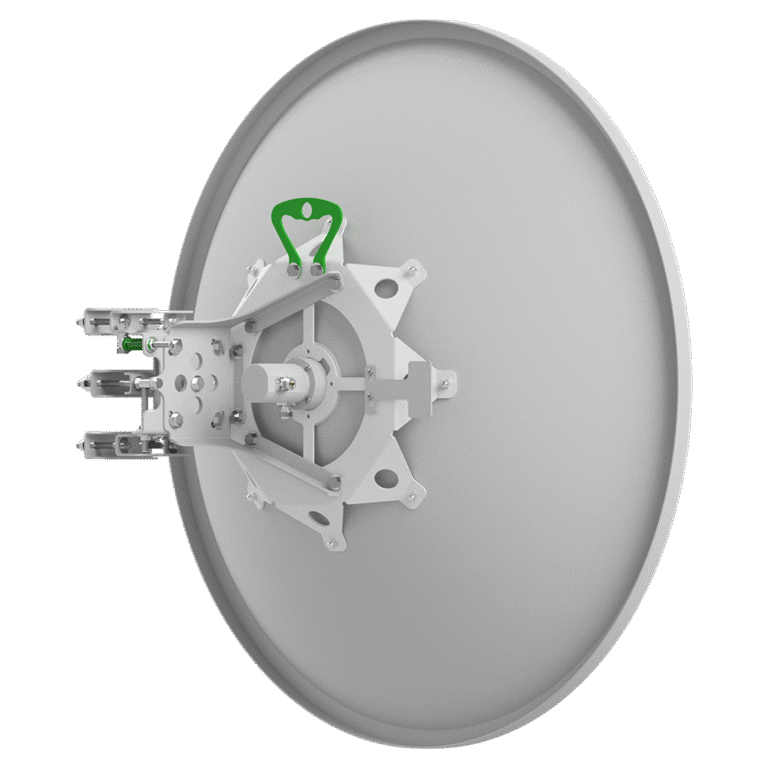

Mounting Kit Style

Easy Mount Kit
