PHASE-30-WB-NP

قابلیت های کــــاربردی​

  • Feature 1: Durable and Lightweight Body Made of Aluminum Alloy.
  • Feature 2: Wide Frequency Band Coverage of 4, 5, and 6.
  • Feature 3: Corrosion-Resistant Base Utilizing a Geomet Coating Process.
  • Feature 4: Antenna Depth Optimization to Enhance Antenna Efficiency in High Frequency Interference Environments.
  • Feature 5: Ideal for Short-Distance Use Up to 10 Kilometers.
  • Feature 6: Resistant to Antenna Rotation During Wind Gusts.
  • Feature 7: Compatible with All Radios on the Market, Such As Mimosa, MikroTik, LigoWave, and Ubiquiti.

جهت استعلام قیمت و دریافت اطلاعات فنی محصولات فراموج، لطفاً از طریق راه‌های ارتباطی با ما در تماس باشید.همکاران ما در واحد فروش آماده پاسخ‌گویی و ارائه مشاوره تخصصی به شما هستند.

خدمات پس از فروش

خدمات پس از فروش

گارانتی 18 ماهه

کیفیت ساخت و مواد اولیه

warranty

گارانتی 18 ماهه

نصب آسان

نصب آسان

If you need a powerful wireless antenna for medium distances (for example, up to about 25 kilometers), you’ve come to the right place! The PHASE-30-WB-NP wireless antenna is a suitable antenna for medium distances, and its installation and setup are very simple. It is also compatible with all radios on the market. In other words, you can use radios like Mikrotik and Mimosa with this antenna.

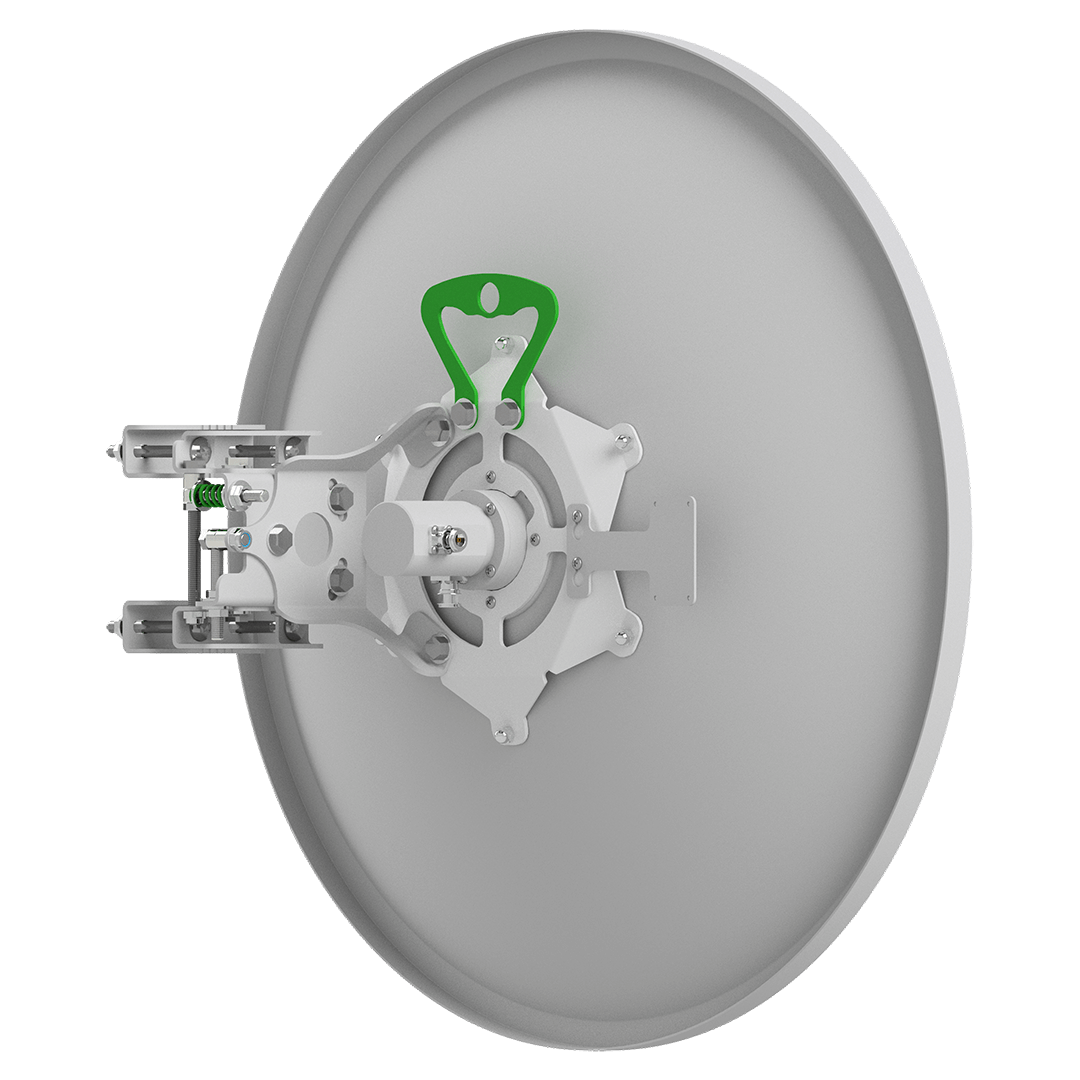

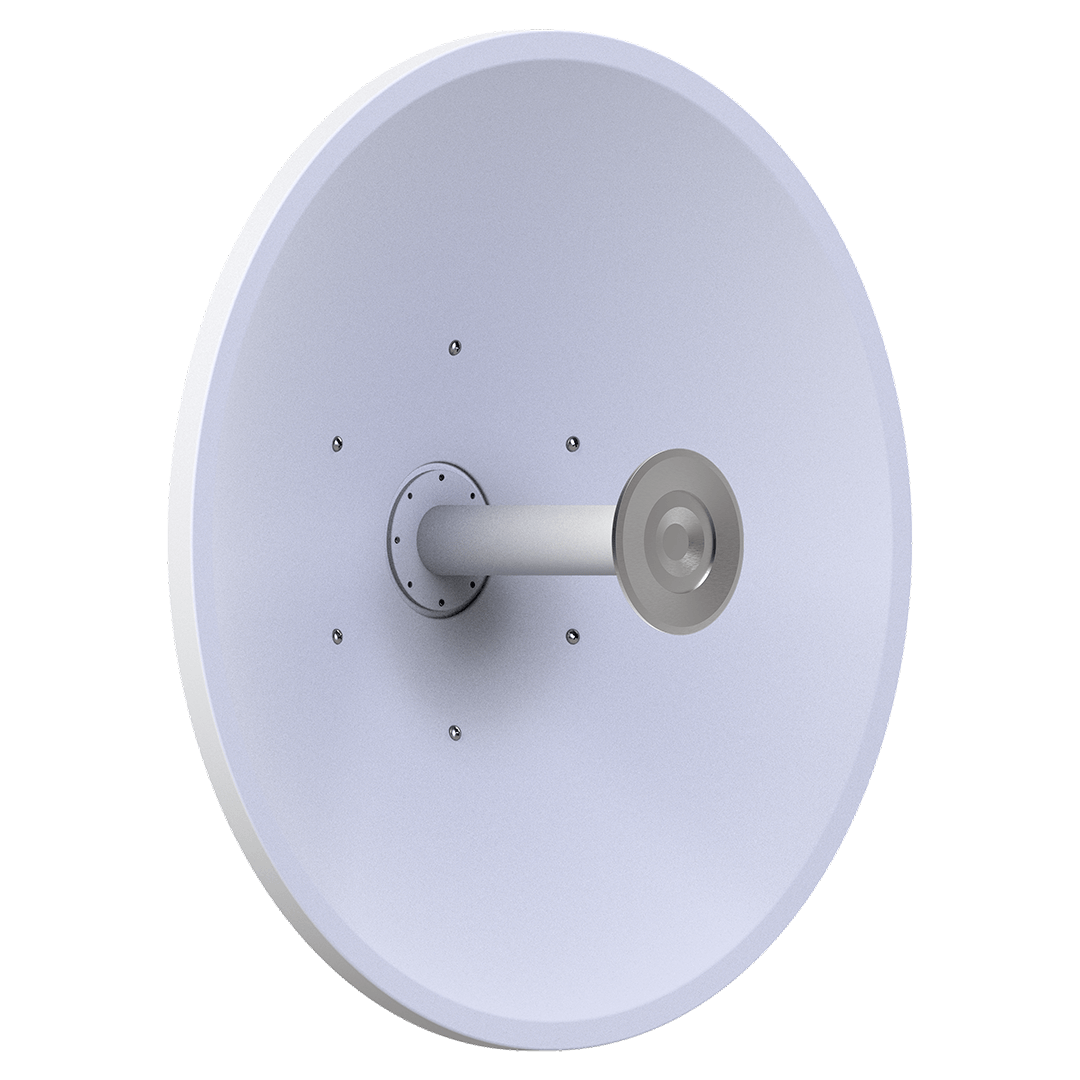

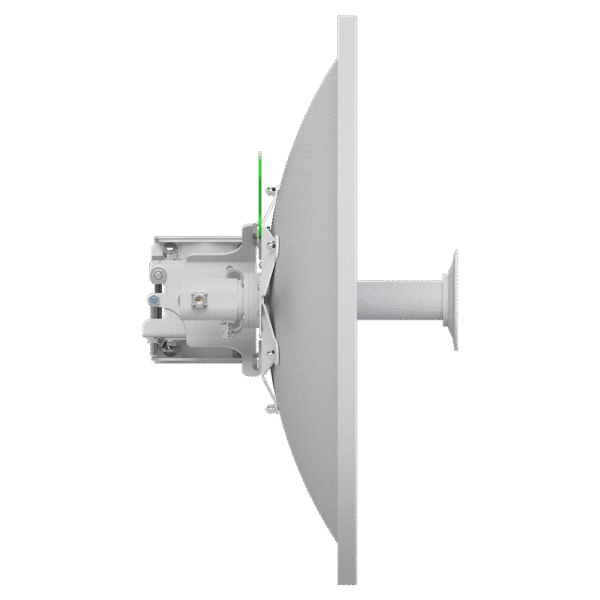

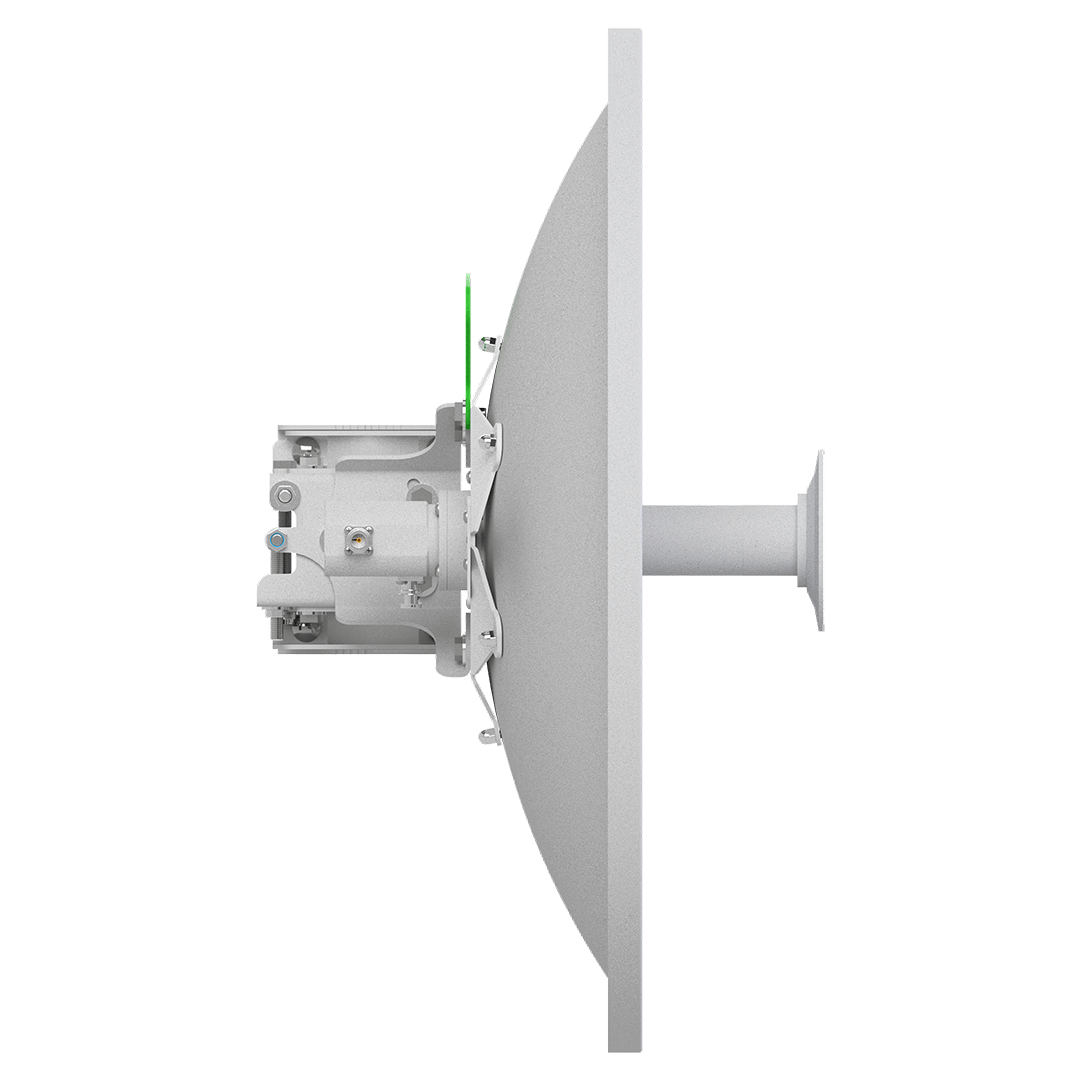

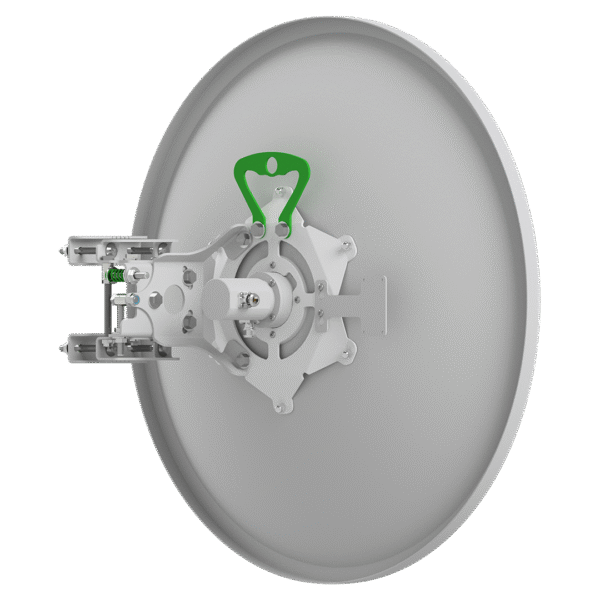

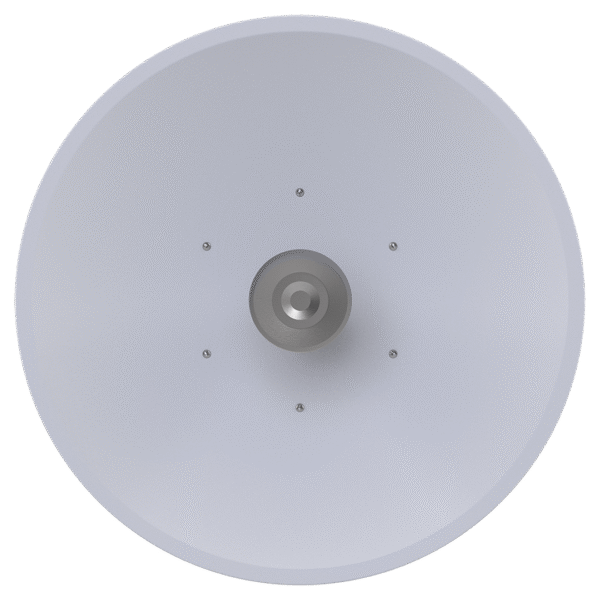

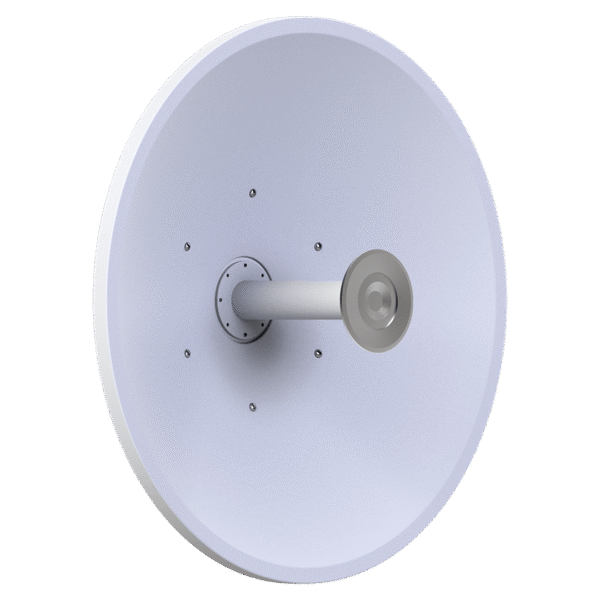

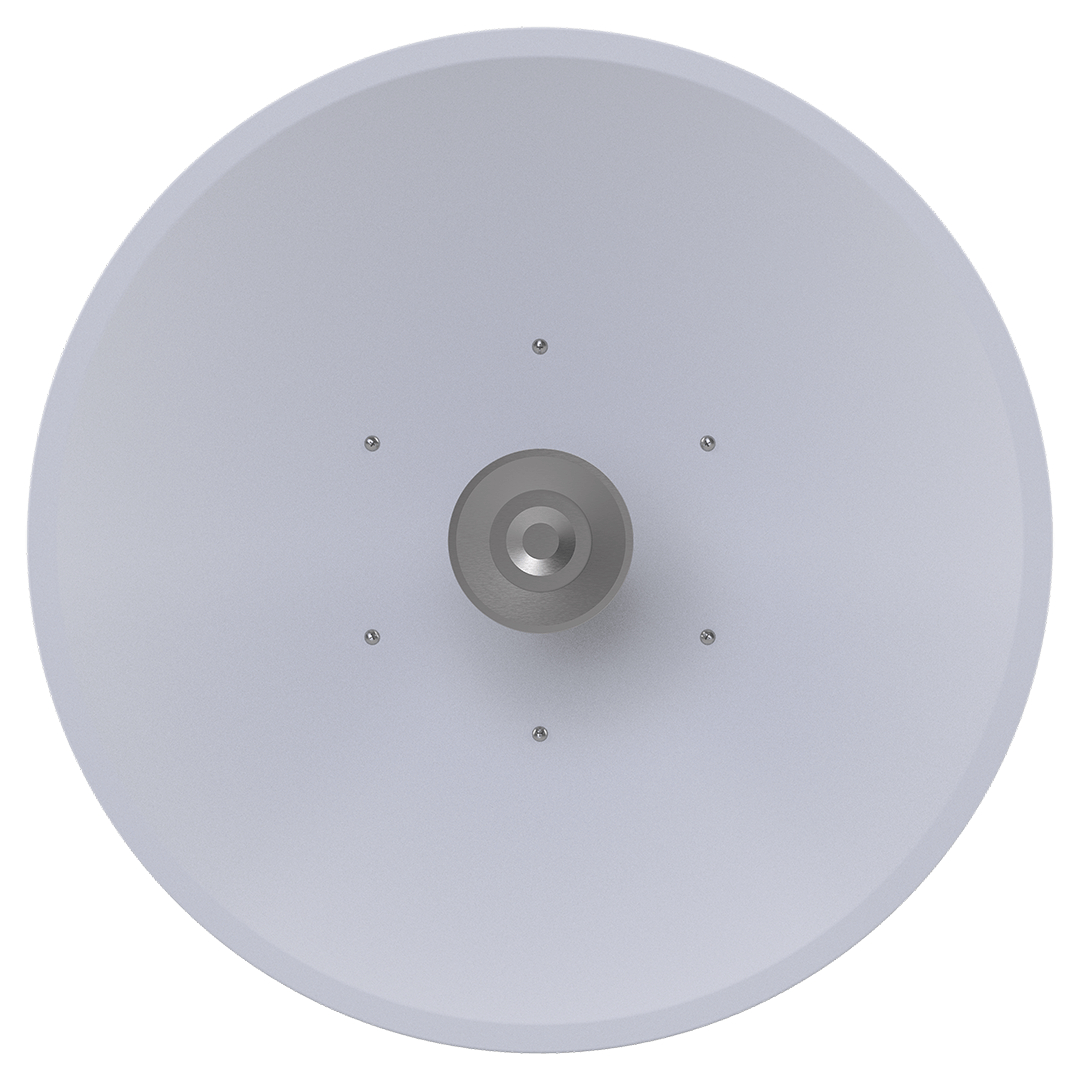

PHASE-30-WB-NP antenna

The 30 dBi antenna from the PHASE brand, with a diameter of 65 centimeters, is used for data transmission over medium distances up to 25 kilometers. The base, or mount kit, of this antenna is the easy-to-install type (Easy Mount kit), and the base construction utilizes a Geomint coating process for maximum resistance against corrosion and rust.

PHASE-30-WB-NP antenna

This product is fully compatible with all radios available on the market, especially those from Mikrotik, Mimosa, and LigoWave. This PHASE antenna is offered at the same price for both the 5 and 6 GHz frequency bands. Additionally, this antenna can be customized for use with Mimosa X series products at the same price.

Product Model

PHASE-30-WB-NP

Antenna Type

Parabolic Solid Dish Antenna

Frequency Range

GHz 4.5-6.4

Impedance

50 Ω

Polarization

Vertical and Horizontal

Antenna Gain

30dBi

Weight

net:4.9 kg

Connector Type

2x RP – Female Ntype

Max/Min Gain

in 6400Mhz(31.3dBi) & 4500Mhz(27.5dBi)

Front to Back Ratio

≥ 30dB

S.W.R in Bandwidth

≤ 1.4:1 (Typ)

Single Unit Dimension (mm)

380*650*650

Operating Temperature

-40°C to +80°C

Wind Resistance

200/250 km/h

H/E Plane Beamwidth

5° in 5.5 GHz

Materials

Aluminium alloy and UV Resistant polymer

Mechanical Pan/Tilt

±15°

F/D Ratio

0.36

ETSI Specification

EN 302 326 DN2-DN5

Mounting Kit Style

Easy Mount Kit
